Description
The new CORE system from Studiomaster uses a specially designed curved array to provide a controlled and highly effective sound diffusion.
Combining the curved array with a powerful bass reflex subwoofer giving up to 2800W of low end power, the whole system can provide 4400W peak (1100W RMS) in a compact, portable system that will give you the reach and sonic quality expected of an ultra compact array system.
To complete the system, the CORE comes with a built-in 4 channel mixer, with DSP control and Bluetooth® connectivity.

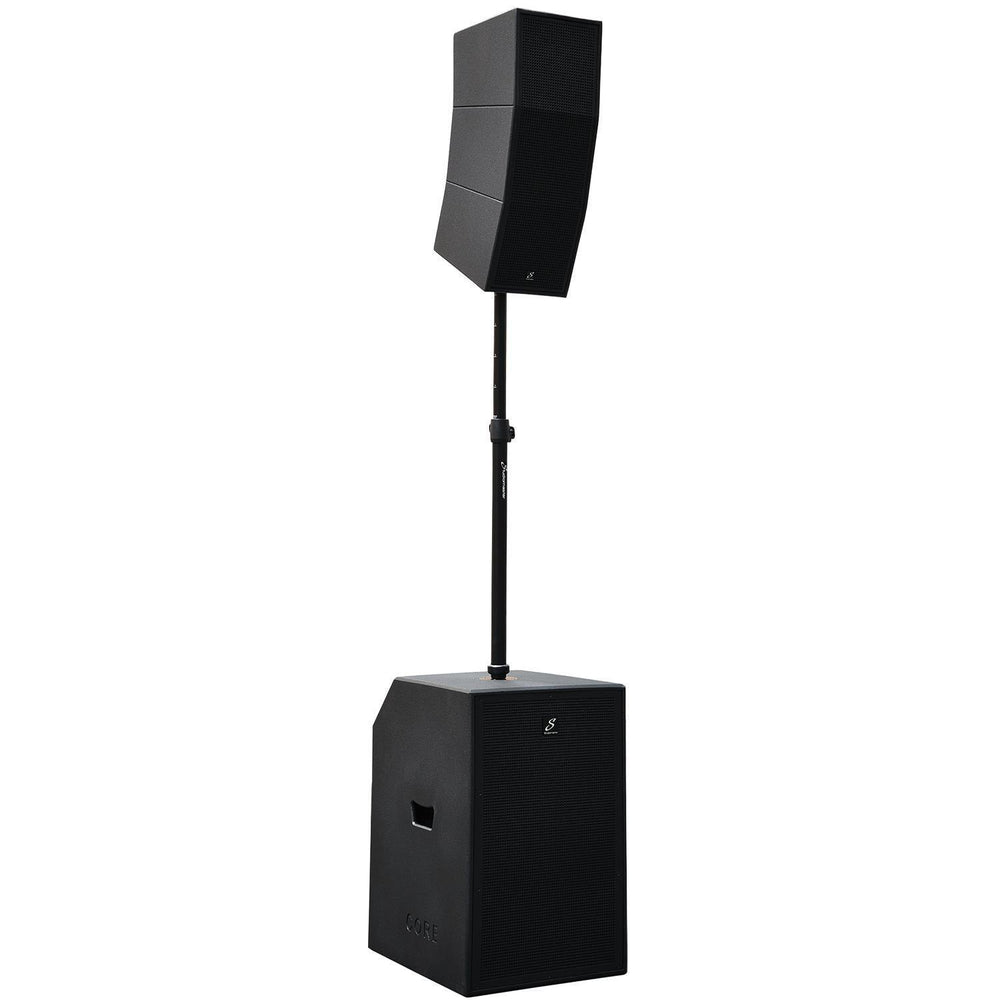

The CORE system is designed to be simple to set-up and use. The air-suspension adjustable speaker pole includes internal wiring, so just lift and place the lightweight curve array on top of the pole. Connect your power and you are good to go! Truly an ALL-IN-ONE system. Perfect for any performance.
Any modern portable PA system needs to produce clear highs and thumping bass. The CORE system is no exception. The tuned active sub bass is a bass reflex, phase inverted design incorporating up to an impressive 700W + 400W amplifier module, capable of delivering power to the sub and to the curve array system.
The wooden cabinet is made to the highest standards with durable paint finish and large easy to grip handles.
Utilising a carefully designed angled cabinet housing the 3x 5” or 8” mid frequency drivers along with an angled array of 9x or 12x 1” dome tweeters provides a super wide 100° horizontal and 70° vertical pattern. Minimising energy wastage and providing an impressive audience coverage compared to a straight compact PA system.
All this is housed in a tough, compact cable free cabinet with a strong steel grille to protect the internal magic.
SUB SPECIFICATION:
Speaker – 1×15” low frequency driver
Rated power (SUB) – 700W (rms)
Amplifier power – 700W (LF) + 400W (MF/HF) (rms)
Max SPL – 128dB
Dimensions – 485mm x 725mm x 585mm
Net weight – 37.5kg
CURVE ARRAY SPECIFICATION:
Speaker MF – 3×8” Neodymium full range driver
Speaker HF – 12×1” dome tweeter
Rated power – 400W
Coverage – 100° (h) x 70° (v)
Dimensions – 255mm x 670mm x 285mm (450mm max)
Net weight – 11.5kg
MIXER SPECIFICATION:
DSP – 24bit module with mode, EQ, limiter, delay and mix level control
Inputs – 2x mic (XLR) / line (6.35mm jack) balanced, 1x instrument Hi-Z (6.35mm jack), 1x stereo line (RCA phono) / Bluetooth®
Outputs – 2x balanced line / link output (XLR), 1x balanced line / link MIX output (XLR)
