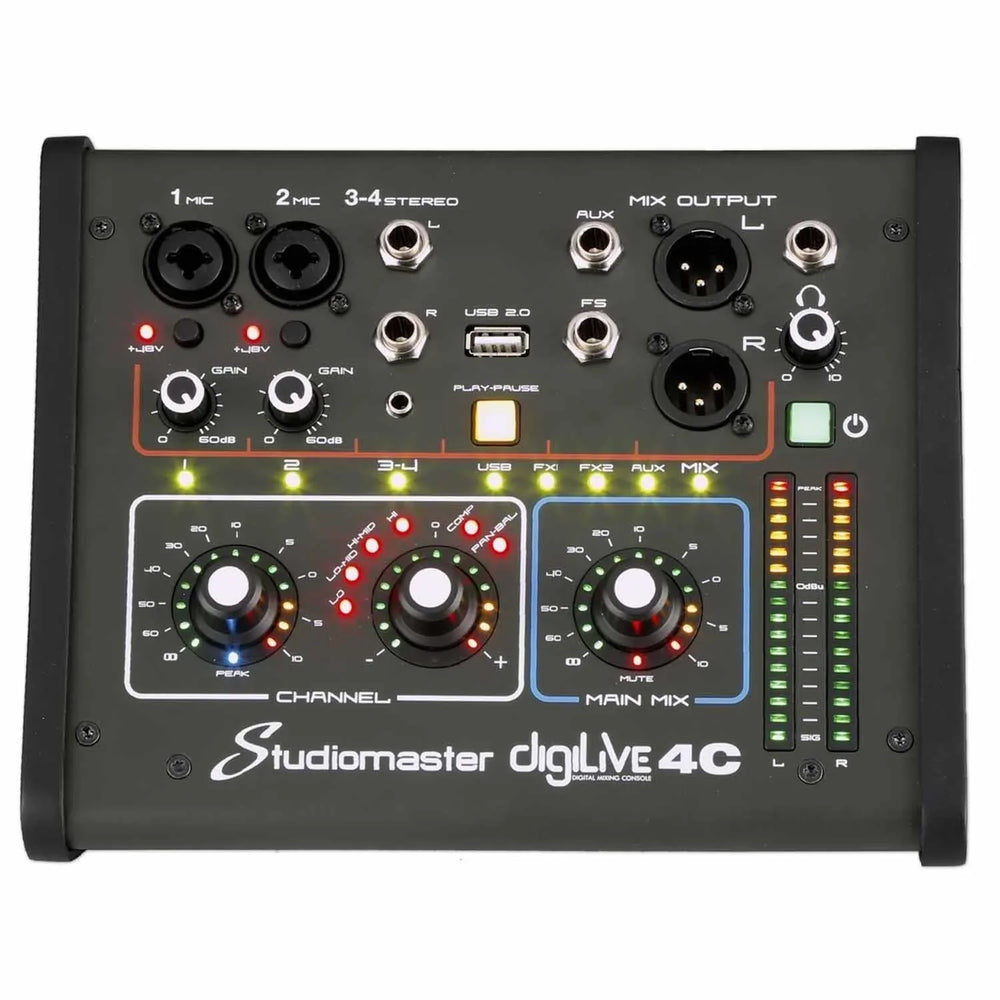

Studiomaster DIGILIVE4C 4 input Compact Digital Mixer

The DigiLive 4c is a compact digital mixer with 2 mic inputs and stereo line inputs.

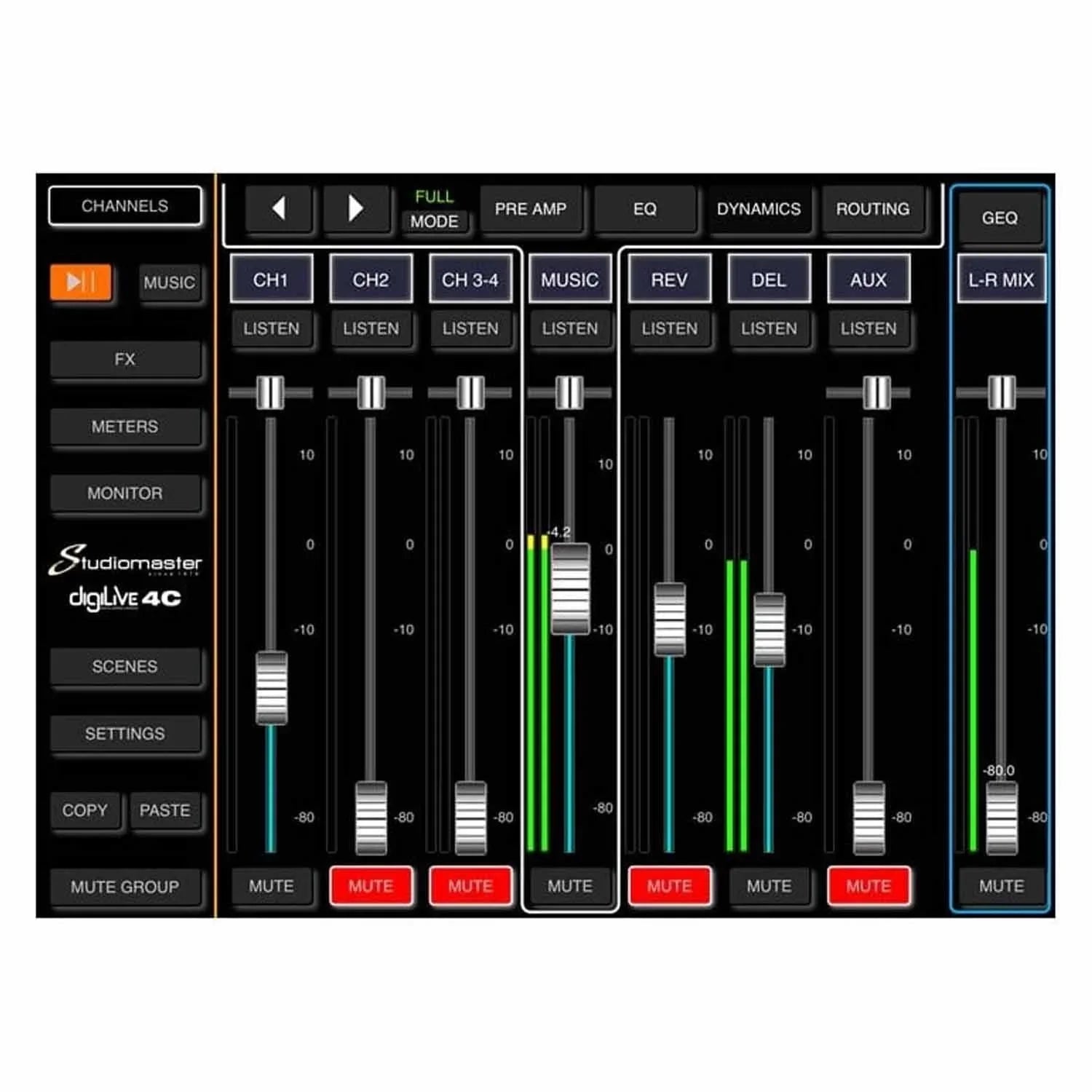

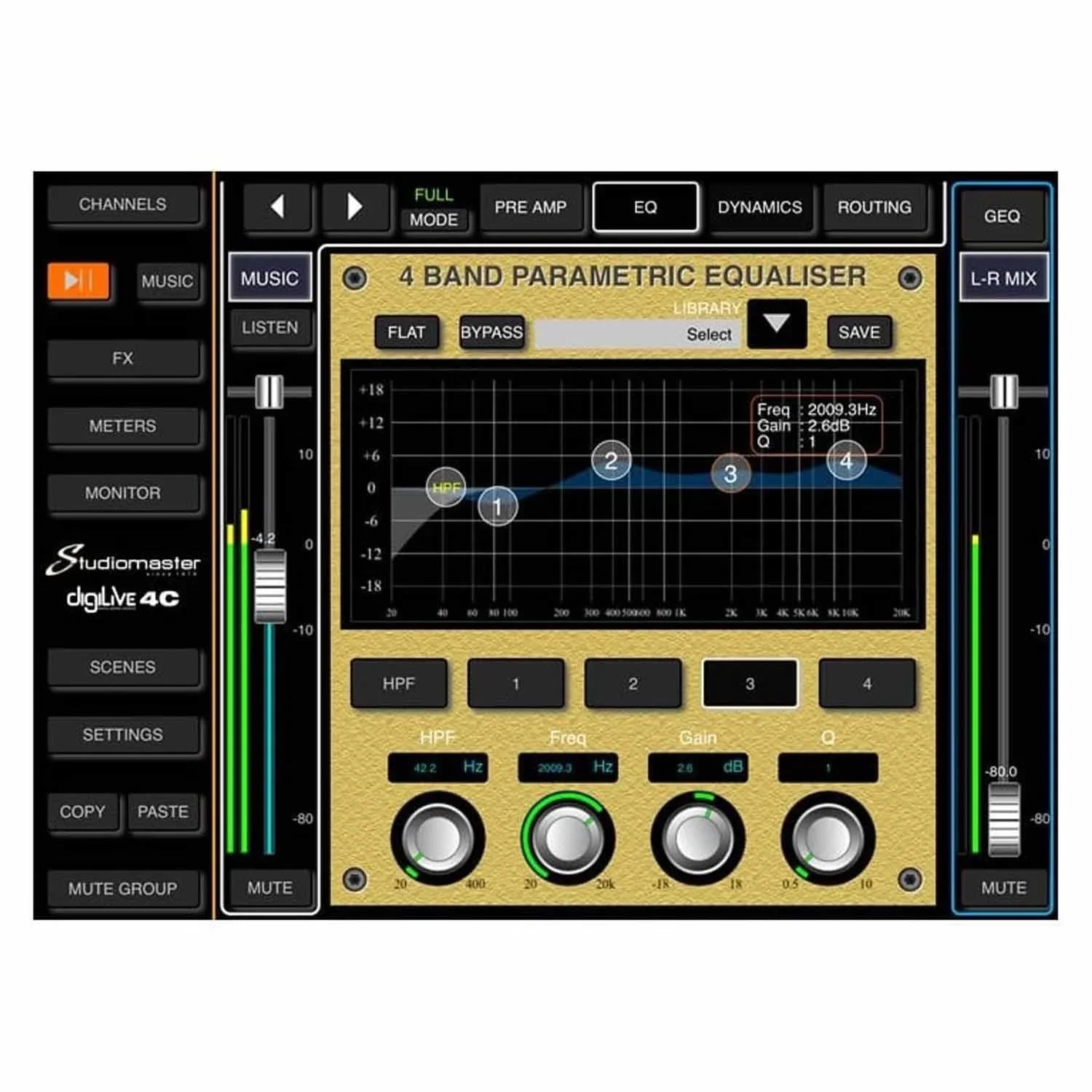

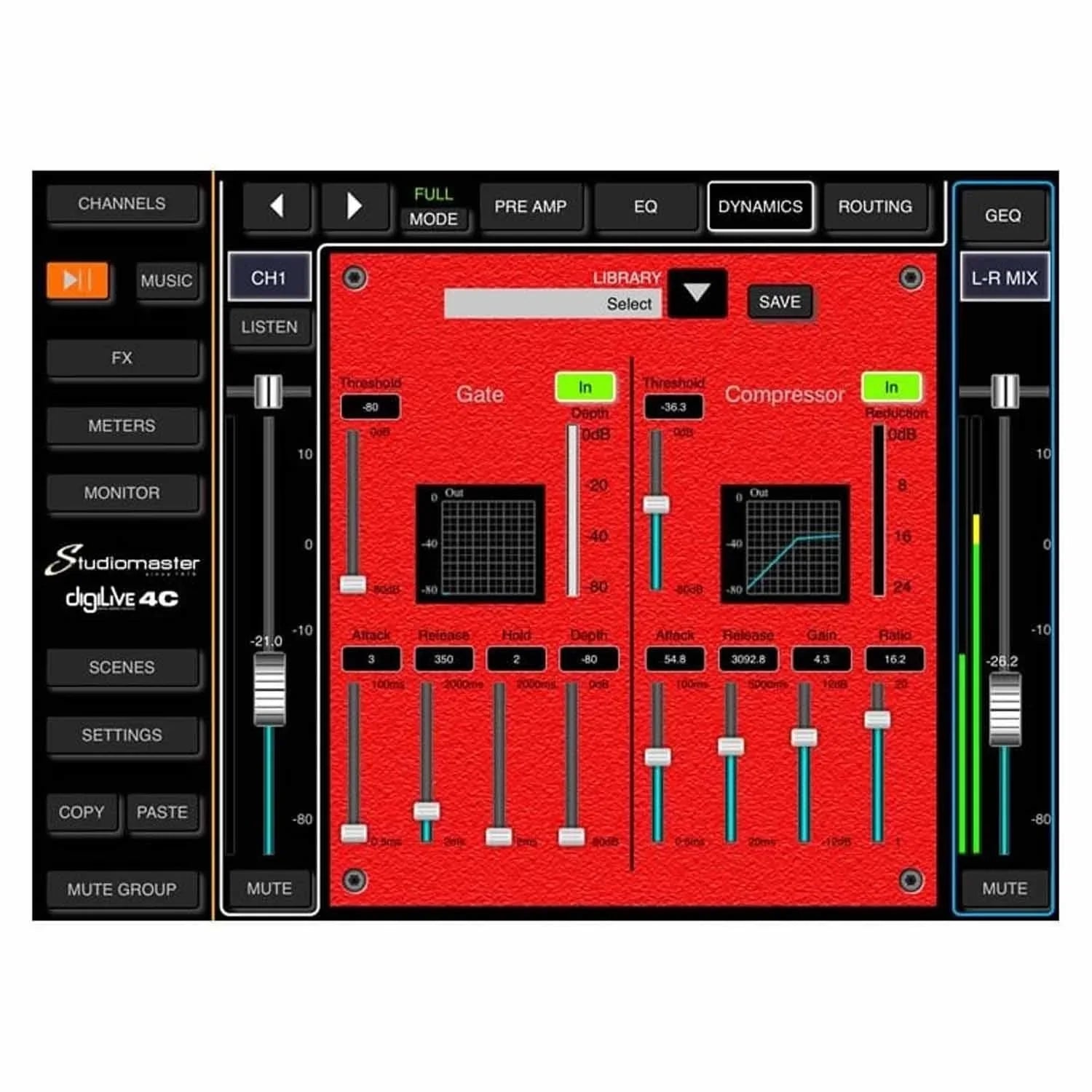

Controlled via a tablet or phone over WiFi, the DigiLive mixers make it easy to control levels from anywhere in the venue, as well as store and recall presets for regular venues.

• 4 input, 2 Mic, 1 Stereo
• Connect with any device with Wi-Fi or LAN
• PHONE – TABLET – LAPTOP – multi platform
• 2 effect busses
• Assignable footswitch input
• Complete control from the front panel
• analogue feel to operate
• Balanced input and output sockets
• Ultra compact
• Professional features throughout

Inputs: 4 analogue input
MIC Input: 2 MIC/LINE COMBO XLR/JACK
LINE Input: 1 STEREO Jacks/3.5mm mini Jack
Master output: 2 Left/Right balanced XLR
Internal busses: 2 stereo FX / 1 mono AUX / stereo PFL / Main Mix
Stereo Monitor: 1 TRS Jack output
Headphone: 1 TRS Jack output
Control Interface: Full mix from 3 rotary encoders
Sample Frequency: 48 KHz
AD/DA: 48KHz, 24-bit
DSP: 40-bit float point, SHARC processor
Remote control: Cross platform – Any device with Wi-Fi / Lan and web browser
Effects: 2 – programmable DELAY and REVERB
USB Interface: 2 for playback/recording, scene storage and system updates
Network: yes via WIFI external module or RJ45 LAN connection
Power: 90-240V ~ 50/60Hz power supply 12VDC output
Weight: 6kg
