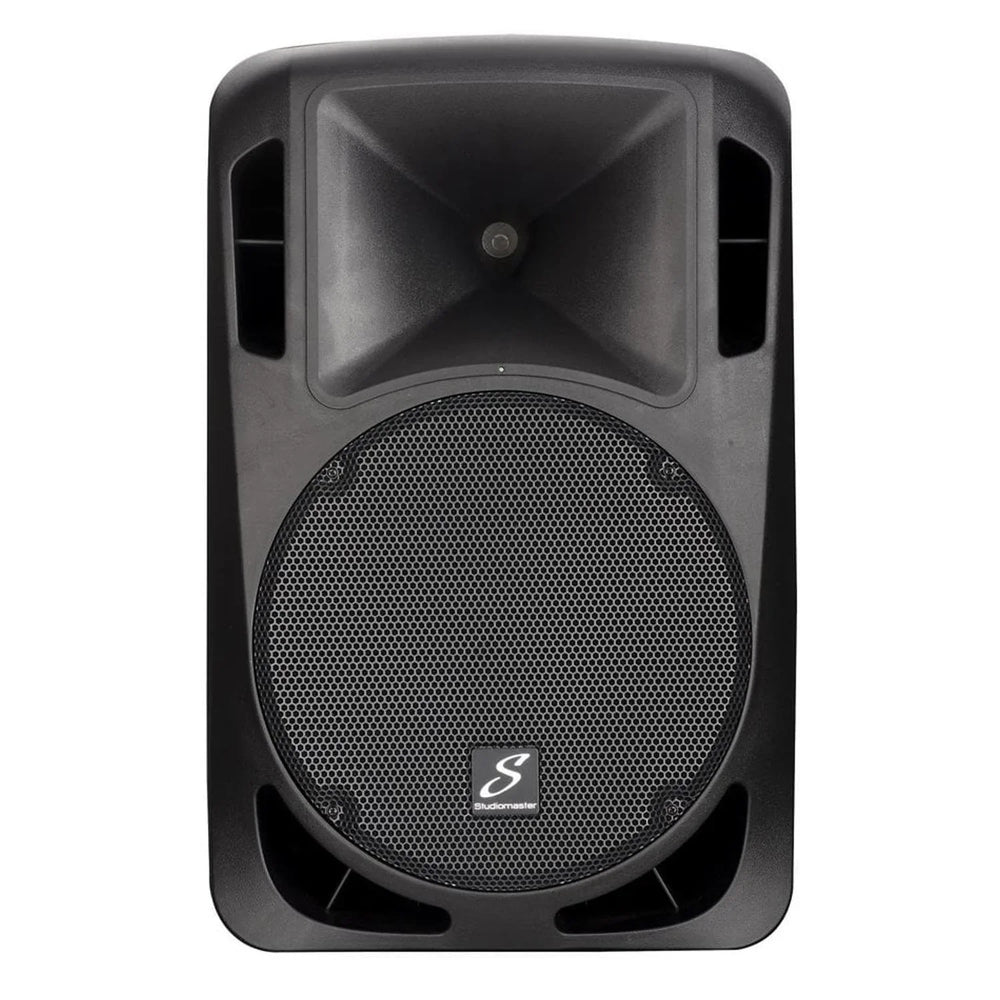

Studiomaster Drive 12AU Active PA Speaker With Media Player

The Drive series is Studiomasters largest range of active speaker cabinets, the specification and quality of these injection moulded cabinets is putting this series at the front of the queue for affordable, robust and great sounding speakers.

The DRIVE12AU features a built in media player, 3 band EQ, mic/line input connections on XLR and Jack, gain and level controls and a link facility to connect through to multiple cabinets from one signal source. The new Class D amplifiers in these models has been designed to deliver high power and a clean sound at all power levels.

All models come in a great looking high quality injection moulded cabinet, with the additional benefits of 35mm speaker pole connection, multiple M10 flying points, and large easy to grip carry handles.

• 12″ two way active full range cabinet
• Bluetooth playback
• USB/SD card player, SD card recording
• 310 watts (RMS)
• High quality durable injection moulded cabinet
• Class D amplification
• Lightweight, high powered components
• 3 band EQ.
• Frequency response (-10dB): 50Hz – 20kHz
• Input sensitivity (Line): 0dBu
• Input sensitivity (Mic): -36dBu
• Max SPL: 126dB
• Amp Power: 620W(PGM), 310W(RMS) / 250W(LF) + 60(HF)
• LF: 12″ woofer / 50mm voice coil
• HF: 34mm compression driver / 1″ throat
• Coverage (HxV): 80° x 40°
• Crossover: 2.0kHz
• Input Connection: Jack/XLR
• Power voltage: 115V / 230V
• Hanging system: 5x M10 hanging points
• Dimension W*H*D: 390 x 630 x 360 (mm)
• Weight: 19KG
