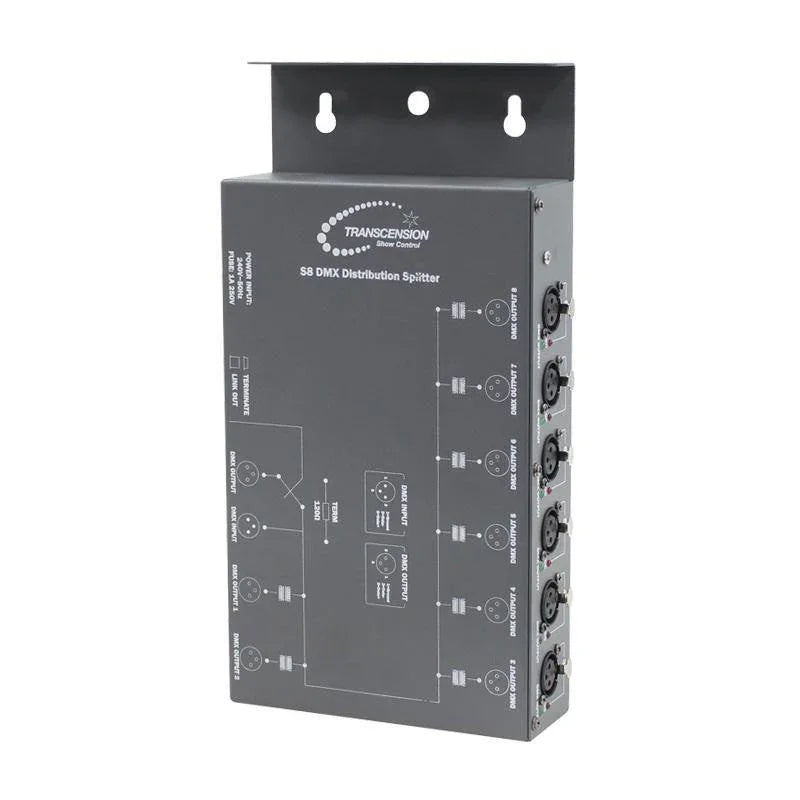

Transcension S8 DMX Distribution Splitter
Product Description
An eight way DMX distribution splitter featuring one input, link output and eight outputs each electronically isolated from both each other and from the input. The S 8 can be used to simplify DMX cabling allowing lighting systems to be cabled in a star form at while working to prevent data errors. Each of the eight outputs features an independent driver coupled with DC and DMX indicator LEDs. Housed within a compact, steel chassis the unit is ideally suited to mobile applications, and also features a number of holes suitable for truss clamps or wall mounting.
- 8 x 3-Pin XLR outputs
- Link output with switchable termination facility
- Sturdy, steel chassis with multiple mounting options
- IEC power input
- Power supply: 240V, 50Hz
- Fuse: 1A 250V
- Dimensions: 315 x 175 x 60mm
- Weight: 2.1kg
