Description

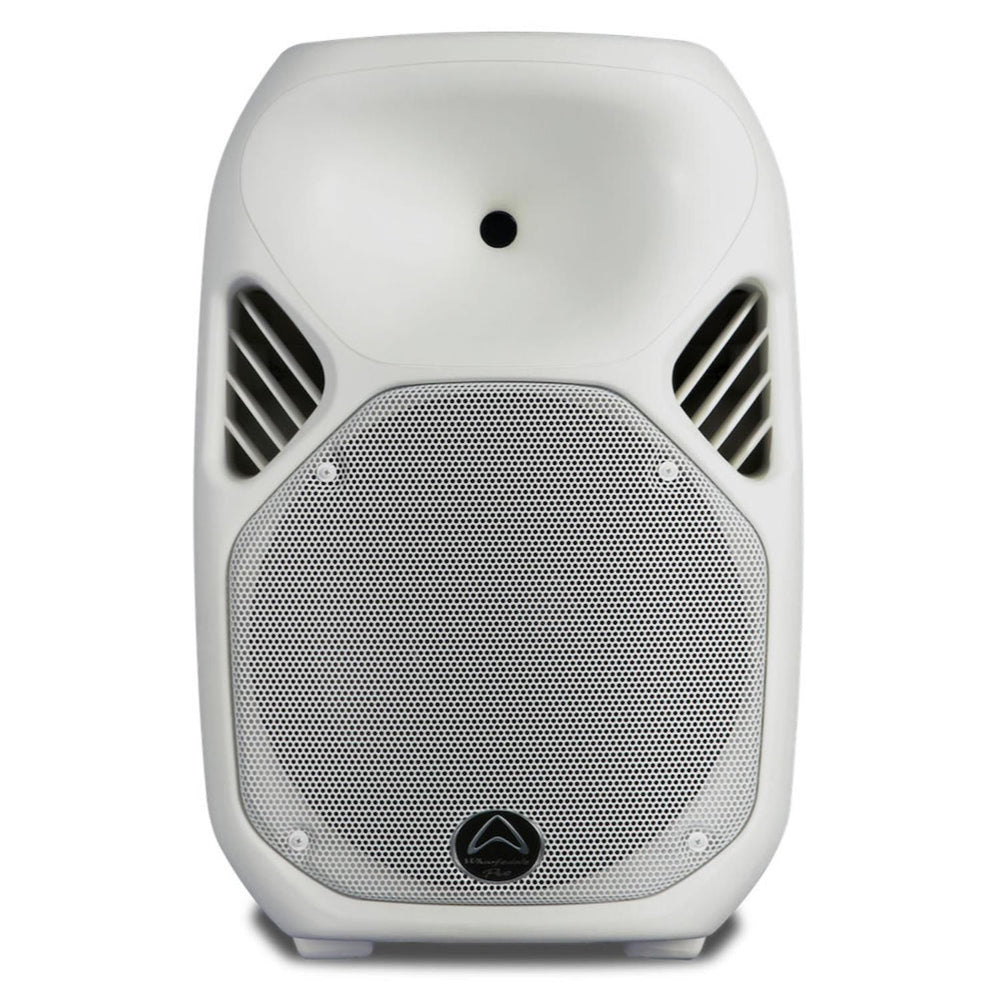

The all-new Wharfedale Titan AX12 active loudspeaker now features our cutting edge 6-position DSP engine and all-new HF and LF drivers. No other competitive model features such powerful and effective DSP or such advanced transducers. Rated at 600 watts peak and with 128dB Max SPL, it’s an ideal solution for small to medium sized venues. We have also tweaked the laminar rib cabinet structure to improve structural strength for durability and acoustic performance. TITAN AX12 raises the bar for portable PA and is built to last.
- 300 watts programme / 600 watts peak
- New HF Drivers have been honed acoustically for high-frequency detail and power
- New 2.5" voice coil LF Drivers reject moisture for resistance in all environments
- New Proprietary 100° x 80° Hybrid Symmetry Horn design
- New category leading DSP functions
- 128dB Max SPL
- New tweaked laminar rib structure
- Integral mixer functions
- Class D Bi-amplified
- Tough, yet lightweight Dynamic Polypropylene cabinet with rubber padded handles
- 10 x M8 rigging points and integral tripod stand adapter
- Rugged protective grille and top-stacking receptacles
- Trapezoid design for arrays as well as stage monitor applications
- System Type Active 12" 2-way Bi-amplified
- Frequency Response (+/-3dB) 55Hz-20kHz
- Frequency Range (-10dB) 50Hz-20kHz
- Nominal coverage (H * V) Hybrid Symmetry Horn 100° * 80°
- Power amp LF RMS/Peak Watts 250 / 500w (Class D)
- Power amp HF RMS/Peak Watts 50 / 100w (Class D)
- Controls - EQ Note - EQ changed by DSP knob
- DSP Advanced user selectable presets. 1:FLAT 2:MONITOR 3:SPEECH 4:BASS 5:PUNCH 6:LIVE
- Hi Pass switch 90Hz
- Amplifier Protection Yes
- Thermal Protection Yes
- Low line voltage shut down 60% Nominal line voltage
- Driver Protection Independant LF and HF limiters
- DC Protection Yes
- Short Protection Yes
- Clip Limiter Turns on ~250w output
- Limiter indicator Red LED
- Power indicator Green LED
- Input type Switchable balanced mic or line level (Chan 1)
- Input connector 2 * XLR & 2 * 1/4" jack (Chan 1 Line/MIC)
- Line output connector Switchable LOOP/MIX Balanced Female XLR
- Power on indicator Rear LED
- 35mm receptacle with lock screw
- 2 carry handles (one on each side)
- LED Horn lighting (On/Off switch) Yes
- Enclosure Material and finish Injection Moulded Polypropylene
- Grille Material & Finish 1.2mm steel
- Dimensions - Height 582.7mm x Width Front 384.6mm x Width Rear 384.6mm x Depth 318.6mm
- Net Weight 12.4kg
- Colour White
