Description

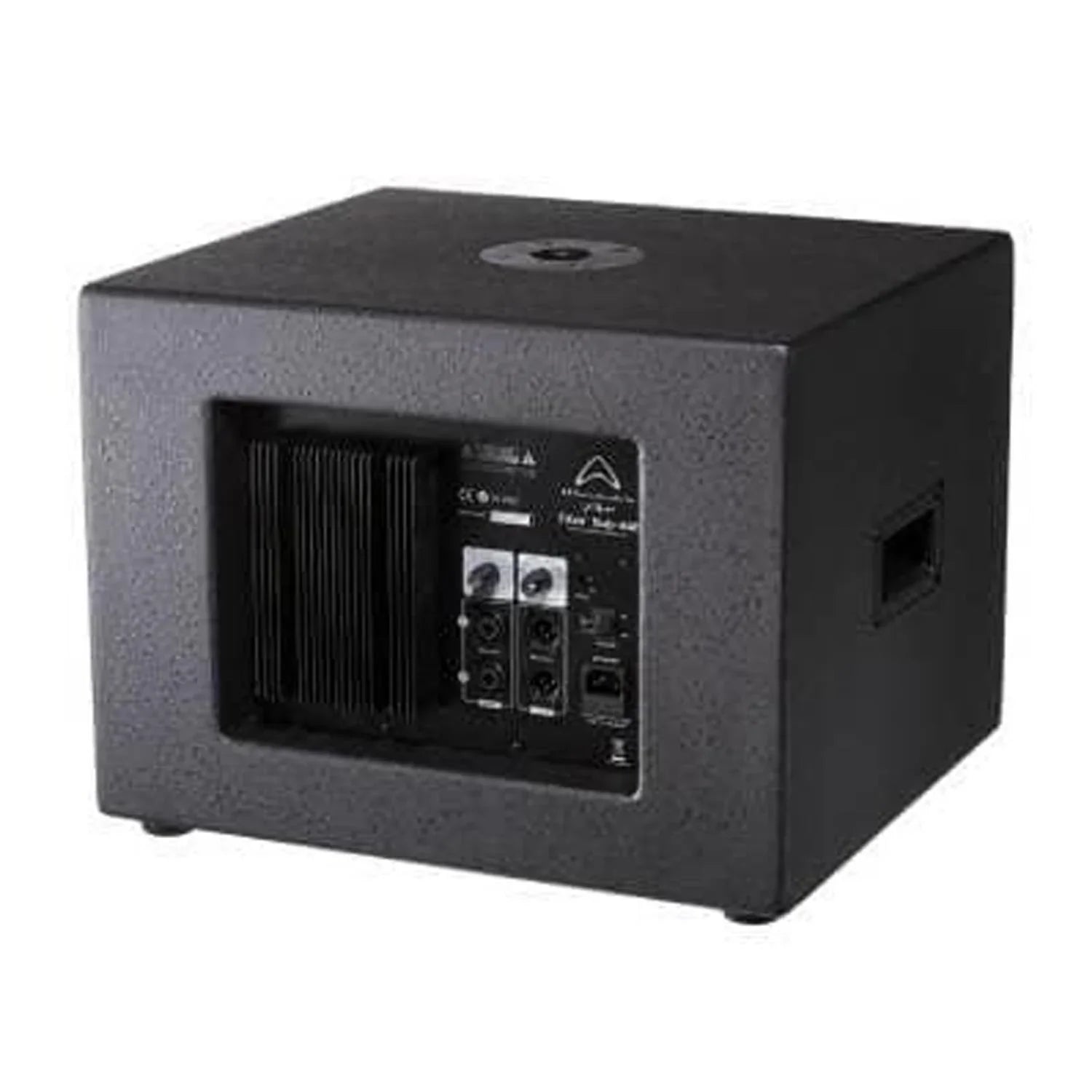

The Wharfedale Pro Titan Sub A12 is an active subwoofer with a continuous output of 250-watts and a peak of 500-watts for a powerful audio performance ideal for portable sound reinforcement. A 12-inch woofer and 2.5-inch voice coil combine to deliver excellent low-frequency tones. This is complemented by the low 55Hz - 200Hz frequency response and 150Hz high-pass frequency selection. The preset integral peak limiter prevents signal distortion and amplifier/signal clipping for a clear sound. Thermal, DC fault and short circuit protection provide additional subwoofer durability and the cabinet features XLR - 1/4-inch combo jack inputs and a balanced line level output.
Class-D Amplification
The inclusion of class-D amplification ensures that the Sub A12 is both powerful and lightweight. The lightweight construction of the subwoofer makes it ideal for a wide variety of environments and applications such as mobile DJs, travelling musicians and more. With featured Qubit technology and 24-bit 192kHz DSP processing, the A12 produces a natural and open sound with smooth crossover points between 80Hz and 200Hz.
Features
12'' active reflex subwoofer
Class-D low-frequency power amplifier
Preset integral peak limiter
Integral phase switch with 0° & 180°
High pass frequency selection
Thermal, DC fault & short circuit protection
XLR - 1/4'' combo jack inputs
Balanced line level output
Integral pole mount adaptor
Specifications
System Type: Reflex Subwoofer
Frequency Response (±3 dB): 55Hz - 200Hz
Enclosure Material: 15 mm MDF
Enclosure Colour: Black
Frame Material: Steel Frame
Size: 12''
Coil Size: 2.5''
Impedance: 4Ω
Speaker Pole Adapter: Yes
Inputs A & B: Balanced Line Level Inputs Via Two Combo Connectors
Output A & B: Balanced Line Level Inputs Via Two Combo Connectors
Input Sensitivity: 0.37V
High Pass Frequency Selection: 150Hz
Phase Switch Selection: 0° / 180°
Crossover Frequency (HZ): 80/100/120/150/180/200 (Adjustable)
Amplifier PowerContinuous: 250W
Peak: 500W
Power On Indicator: LED
Power On Protection: Power Switch On/Off Mute
Thermal Protection: Amplifier Shutdown, Auto Reset
Low Line Voltage Shut Down: 60 Percent Nominal Line Voltage
Driver Protection: Independent LF Limiters
DC Protection: Yes
Short Protection: Yes
Clip Limiter: Turns On 250W Output
Limiter Indicator: Red LED
Power Indicator: Blue LED
Weight: 22.31 kg
DimensionsHeight: 360 mm
Width: 493 mm
Depth: 431 mm
