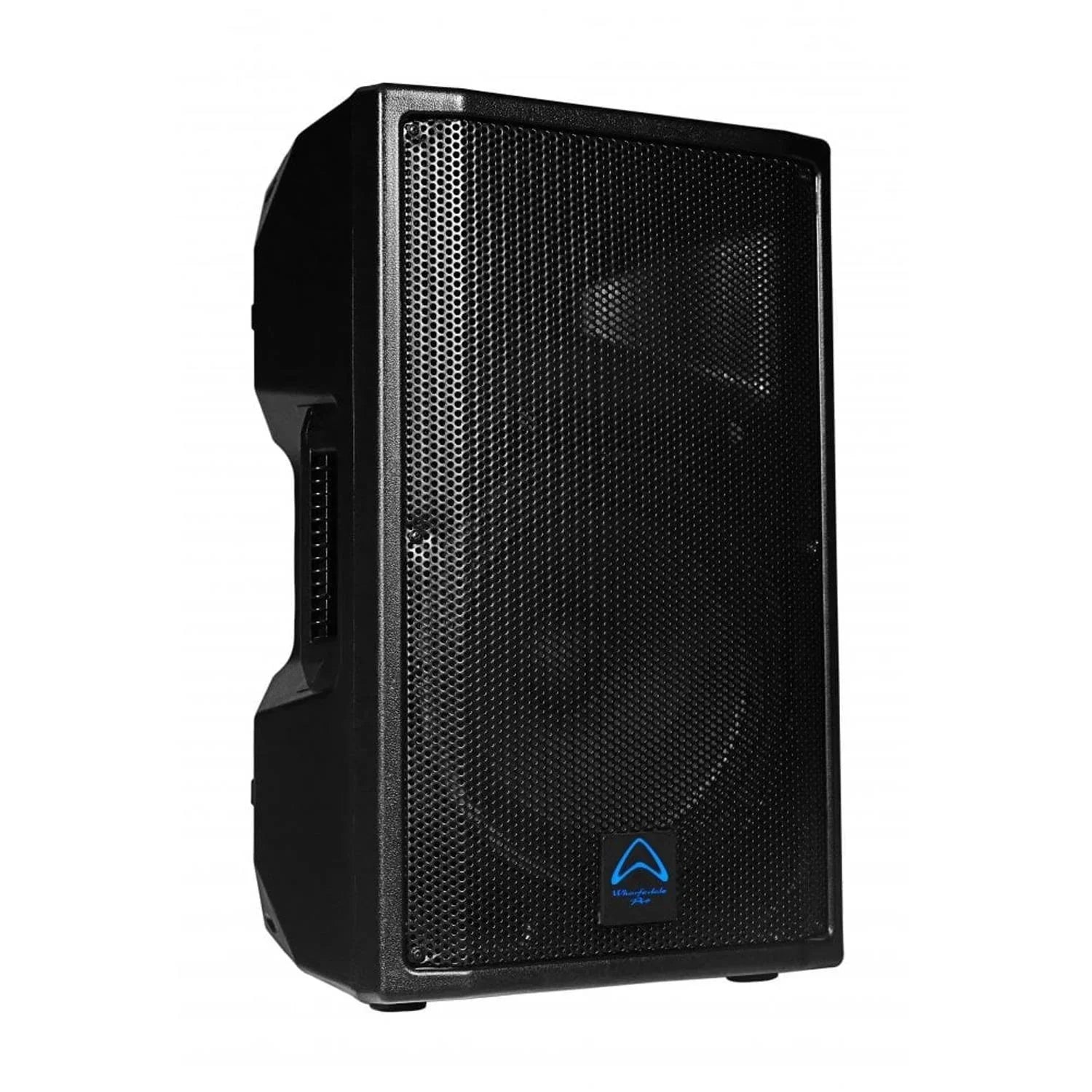

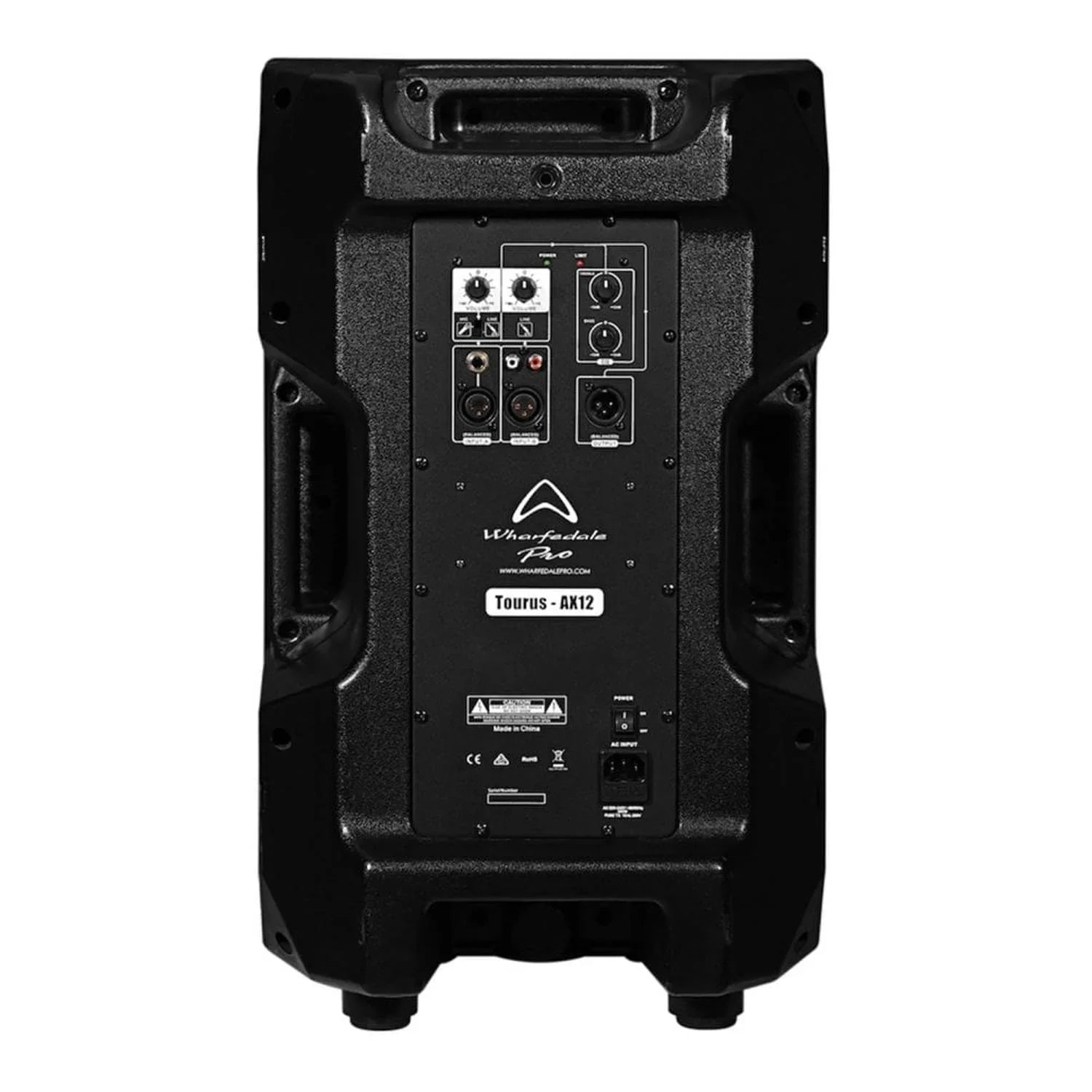

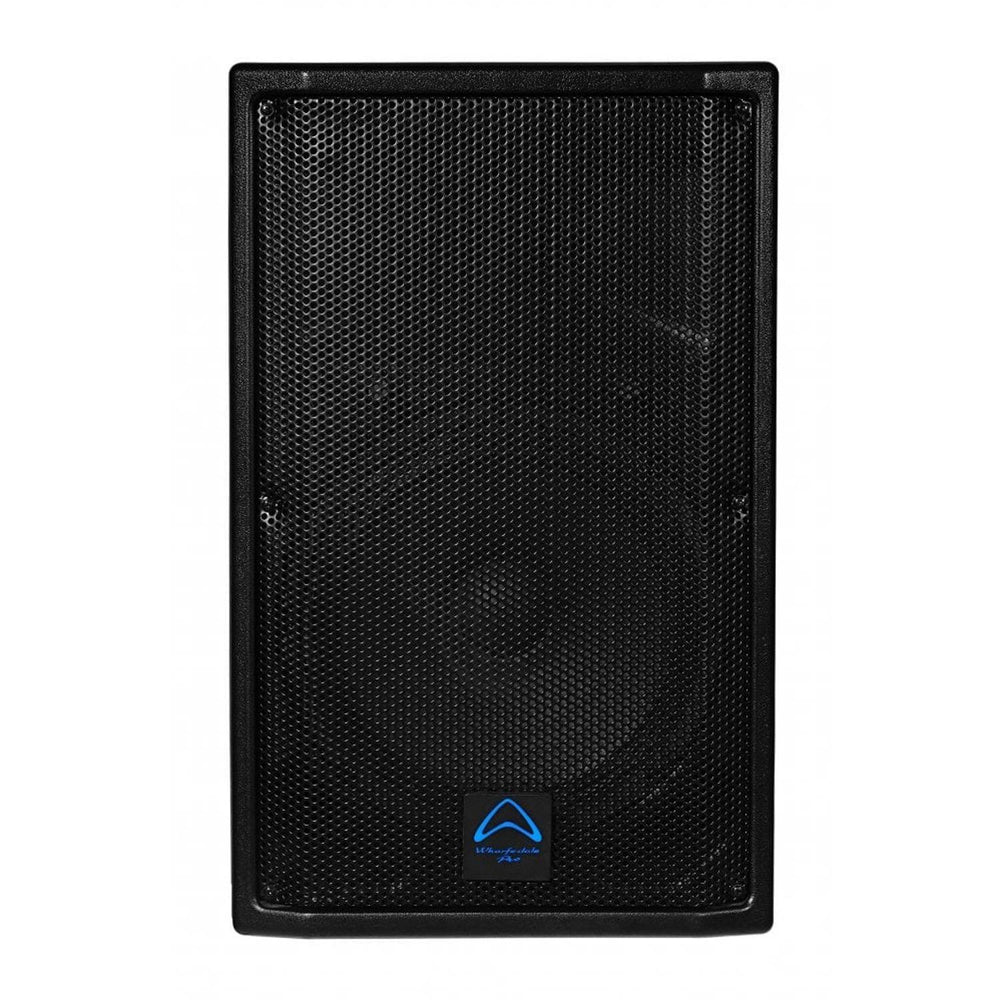

Wharfedale Pro Tourus AX12 12" Active Speaker
Product Description
Wharfedale Pro presents a new series of plastic, active loudspeakers delivering power, value and versatility. Positioned beneath the well established TITAN and the flagship TYPHON series, the new TOURUS series are affordable, powerful and versatile. The new series is for anyone needing big power and features on a compact budget.
Custom WP drivers have been selected to ensure that this affordable series have the power and timbre expected from a Wharfedale Pro loudspeaker. In addition, the amplification stages deploy both Class D (LF) and Class AB (HF) to bring power and value to this new series.
With full steel grilles, multiple handles and 4 x M8 rigging points, Tourus is well suited for installations and for hard work on the road. A new illuminated Wharfedale Pro logo badge is also proudly shown on the front so that Tourus looks as good as it sounds.
| System Type | Active 12" 2-way Bi-Amplified |
| Frequency Response (+/-3dB) | 55-20kHz |
| Sensitivity @ 1w / 1m | 96dB |
| Maximum SPL (peak @1m) | 128dB |
| Low Frequency Transducer | |
| Size (mm / inches) | 305mm / 12" |
| Coil Size (mm / inches) | 50.8mm / 2.0" |
| Impedance | 4Ω |
| High Frequency Transducer | |
| Type | Compression Driver |
| Coil Size (mm / inches) | 44.5mm / 1.75" |
| Exit Size (mm / inches) | 25mm / 1" |
| Diaphragm Material | Titanium |
| Impedance | 8Ω |
| High Frequency Coverage (H x V) | 90° x 60° |
| Amplifiers | |
| LF Power Amplifier (Class D) | 250w Continuous / 500w Peak |
| HF Power Amplifier (Class AB ) | 100w Continuous / 200w Peak |
| Crossover Frequency | HI PASS 2.5kHz LOW PASS 2.5kHz |
| Equalization | +/-12dB Gain for bass and treble |
| Power On Protection | Power switch on / off mute |
| Thermal Protection | Amplifier shutdown, auto reset |
| Driver, DC and Short Protection | Yes |
| Limiter Indicator | Red LED |
| Power Indicator | Green LED |
| Input type | Balanced |
| Input Connectors | 2 x TRS JACK, 2 x RCA AND 2 x XLR |
| Input Impedance | 47KΩ Balanced |
| Maximum Input Level | 5V |
| Line Input Sensitivity | -10dB |
| Mic Input Sensitivity | -40dB |
| Line Output Connector | Male XLR |
| Power Supply | SMPS |
| AC Power Options | 100V-120V and 220V-240V |
| Power On Indicator | LED / Illuminated front logo |
| Rigging / Bracket / Mounting Options | 4 x M8 |
| 35mm Pole-mount with lock screw | |
| 3 handles (2 on sides, 1 on top) | |
| Optional wall bracket (WPB-2) | |
| Enclosure | |
| Enclosure Material | Injection Moulded Polypropylene |
| Colour | Black |
| Grille | 1.2mm steel |
| Dimensions (Unpacked) | |
| Height | 603mm / 23.7" |
| Width - Front | 377mm / 14.8" |
| Width - Rear | 217mm / 8.54" |
| Depth | 347mm / 13.7" |
| Dimensions (packed) | |
| Height | 666mm / 26.2" |
| Width | 430mm / 16.9" |
| Depth | 408mm / 16.1" |
| Weight | |
| Net Weight (kg / lbs) | 15.0kg / 33.0lbs |
| Gross Weight (kg / lbs) | 17.0kg / 37.4lbs |
