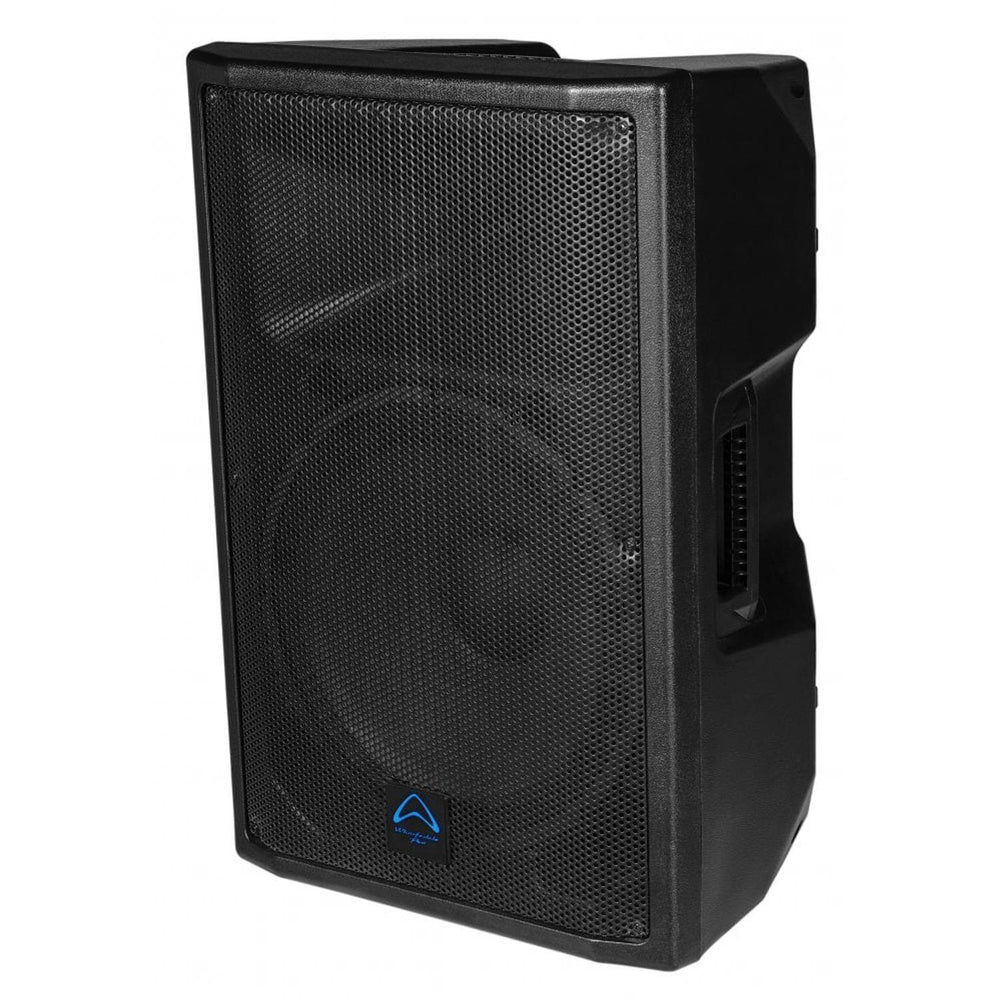

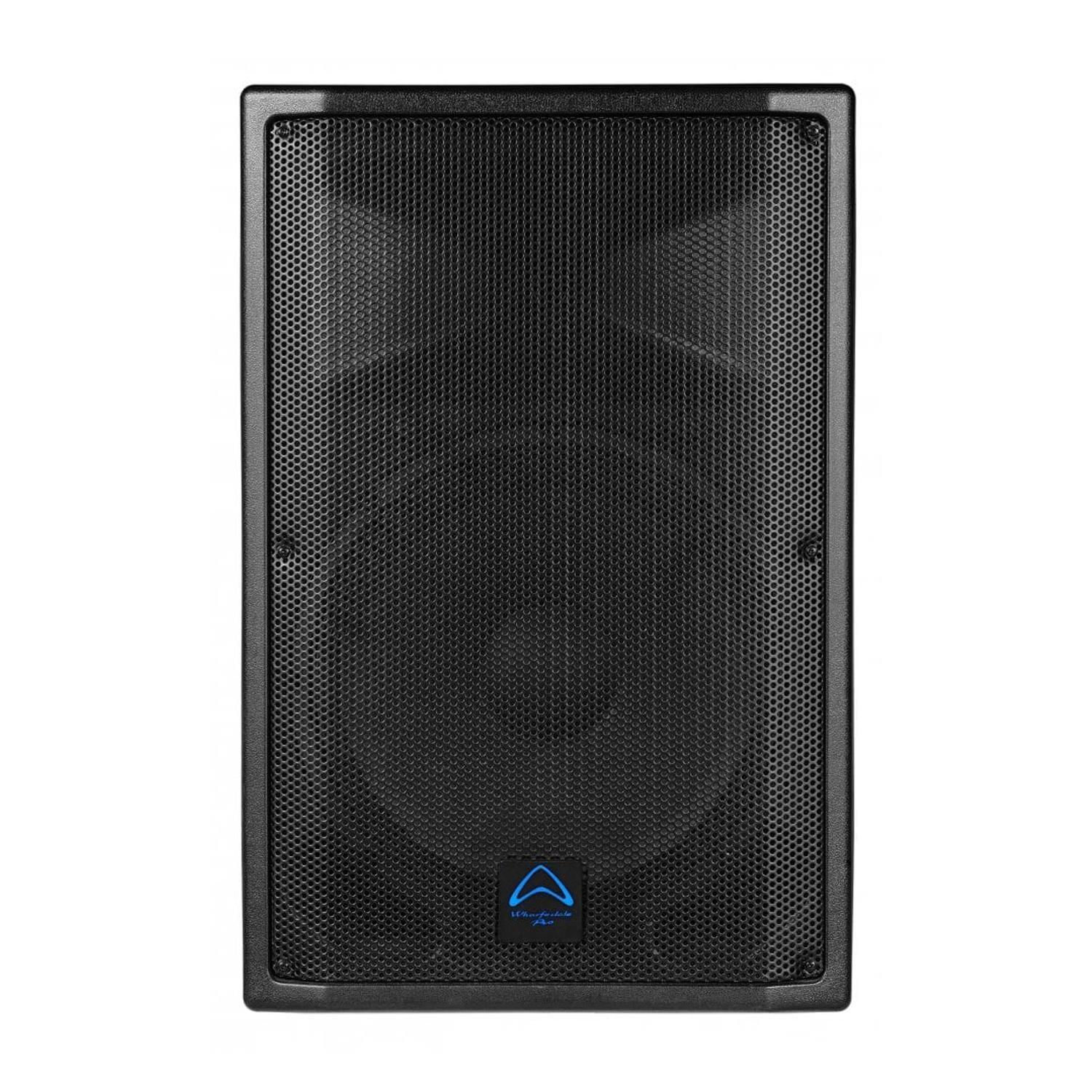

Wharfedale Pro Tourus AX15 15" Active Speaker

Positioned beneath the well established Titan and the flagship Typhon series, the new Tourus series are affordable, powerful and versatile. With TWS stereo link mode, the new series is for anyone needing big power and features on a compact budget. Tourus loudspeakers use the largest HF voice coils in their class. Tourus-AX15 models use a 1.75" coil which is unique at this price point. The 15" version is the largest in the series and perfect for slightly larger venues where power and performance is a must.

This custom made Wharfedale Pro compression driver delivers crisp and precise high frequencies, even at extreme volumes. The internal amplifiers have been tuned specifically for the HF and LF drivers that we have chosen. This makes for perfect power and frequency transfer, resulting in the sonic experience that you'd expect from a Wharfedale Pro active loudspeaker.

Key Features

• 15″ Bi-amplified active loudspeaker
• 1.75″ HF compression driver
• 450 w Continuous
• 900 w Peak

• Model Name: Tourus AX15
• System Type: Active 15" 2-Way Bi-Amplified
• Frequency Response: 50-20kHz
• High Frequency TransducerType: Compression Driver
• Coil Size: 44.5mm
• Exit Size: 25mm
• Diaphragm Material: Titanium
• Impedance: 8 Ohms
• High Frequency Coverage (H x V): 90 degrees x 60 degrees
• AmplifiersLF Power Amplifier (Class D): 350w Continuous / 700w Peak
• HF Power Amplifier (Class AB): 100w Continuous / 200w Peak
• Crossover Frequency: HI PASS 2.4kHz LOW PASS 2.4kHz
• Equalisation: +/- 12dB Gain for bass and treble
• Power On Protection: Power switch on/off mute
• Thermal Protection: Amplifier shutdown, auto reset
• Driver, DC Short Protection: Yes
• Limiter Indication: Red LED
• Power Indicator: Green LED

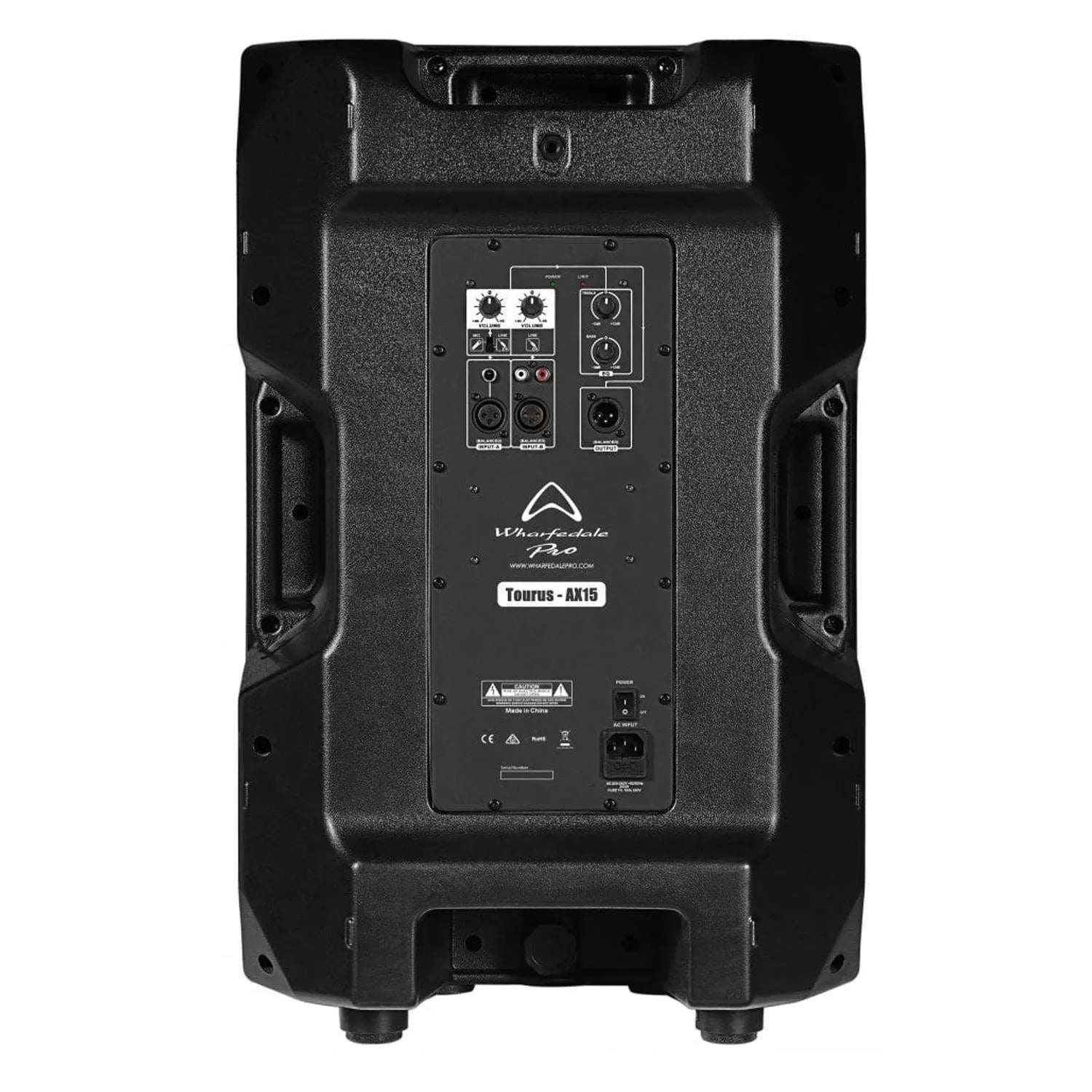

• Input Type: Balanced
• Input Connectors: 2 x TRS Jack, 2x RCA and 2x XLR
• Input Impedance: 47KOhms Balanced
• Maximum Input Level: 5V
• Line Input Sensitivity: -10dB
• Mic Input Sensitivity: -40dB
• Line Output Connector: Male XLR
• Power Supply: SMPS
• AC Power Options: 100V - 120V and 220V - 240V
• Power On Indicator: LED/Illuminated Front Logo
• Rigging/Mounting/Bracket Options4 x M8
• 35mm Pole-mount with lock screw
• 3 handles (2 on the side, 1 on top)
• Optional wall bracket: Wharfedale Pro WPB-2 Speaker Bracket, Black
• Enclosure Material: Injection Moulded Polypropylene
• Colour: Black
• Grille: 1.2mm Steel
• Optional Soft Cover: Wharfedale Pro Tourus 15 Soft Cover
• Dimensions (Unpacked)Height: 693mm
• Width - Front: 455mm
• Width - Rear: 262mm
• Depth: 401.8mm
• Dimensions (Packed)Height: 762mm
• Width: 508mm
• Depth: 425mm
• Weight : 22kg
