Description

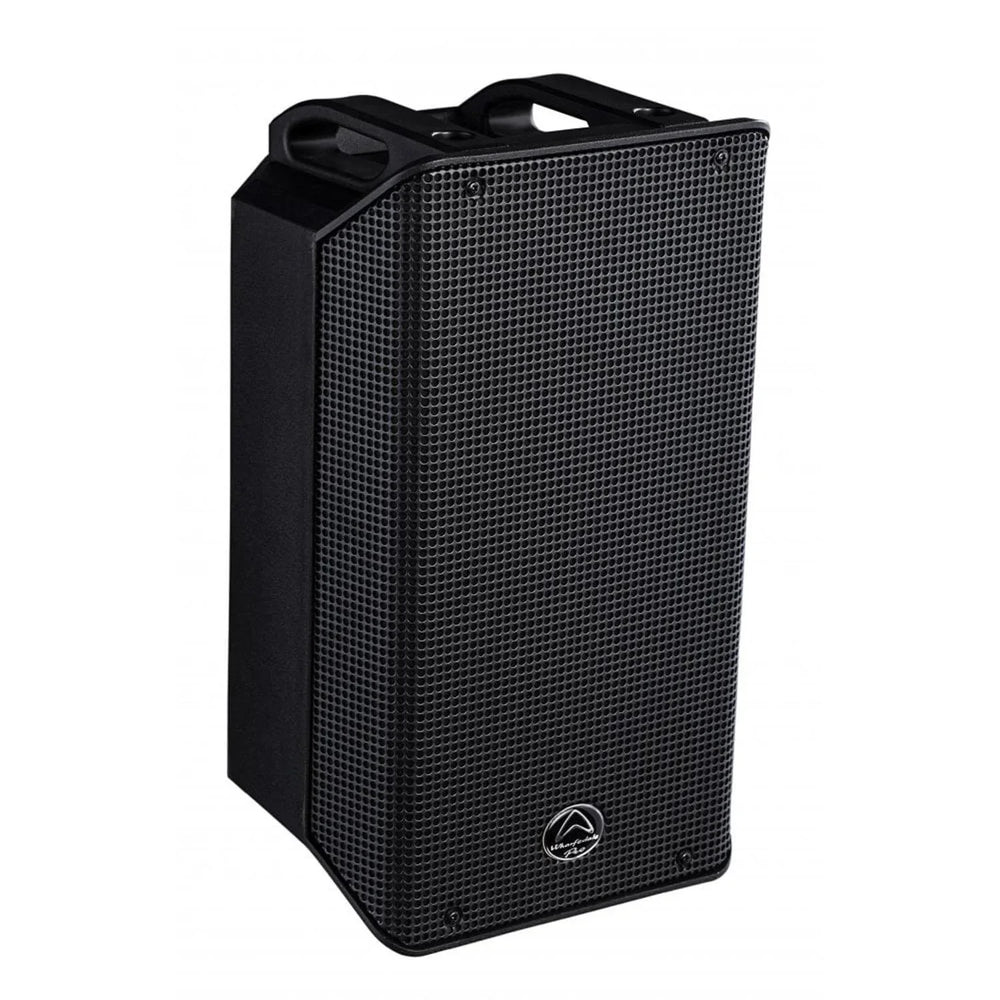

A powerful yet compact active speaker made to Wharfedale's exacting standards. The smallest in the Typhon series, this is a great choice for public PA, small spaces and everything in between. All Typhon loudspeakers are IP54 Certified. IP54 certification assures that the product has a degree of protection against dust ingress and also against splash water from any direction.
Going above and beyond the standard series the Typhon "BT" models feature Bluetooth input connectivity and TWS linking which makes setup with mobile devices simple and cable free. Simply pair your Bluetooth audio source (such as a smartphone or laptop) with a Typhon "BT" model and play away.
Key Features
- 8″ Bi-amplified active loudspeaker
- 1.75″ HF compression driver
- 720 w Continuous
- 1440 w Peak
- 127 dB Max SPL @ 1 meter
- 2.5″ LF voice coil
- Frequency Response (+/-3dB): 65Hz-20kHz
- Frequency Range (-10 dB): 60Hz-20kHz
- Maximum SPL (peak@1m): 127dB
- Sensitivity @ 1W / 1m): 96dB
- Size (mm / inches): 203.8mm / 8"
- Voice-Coil Size (mm / inches): 65mm / 2.5"
- Rated Impedance: 4O
- HF Driver Type: Compression Driver
- Coil Size (mm / inches): 44mm / 1.75"
- Rated Impedance: 8O
- Nominal Coverage (H x V): "Hybrid Symmetry Horn 100°x80°"
- Amplifier Design: 2 x Class D
- Power rating: 1440w Peak (1200W LF+240W HF), 720W Continuous (600W LF + 120W HF)
- DSP Controls-D-EQ: FLAT/MONITOR/BASS/PUNCH
- Input A - type: Balanced/RCA/Bluetooth(aptX,with link Stereo)
- Input Sensitivity: 775mV (0dBu)
- Maximum Input Level: 4V

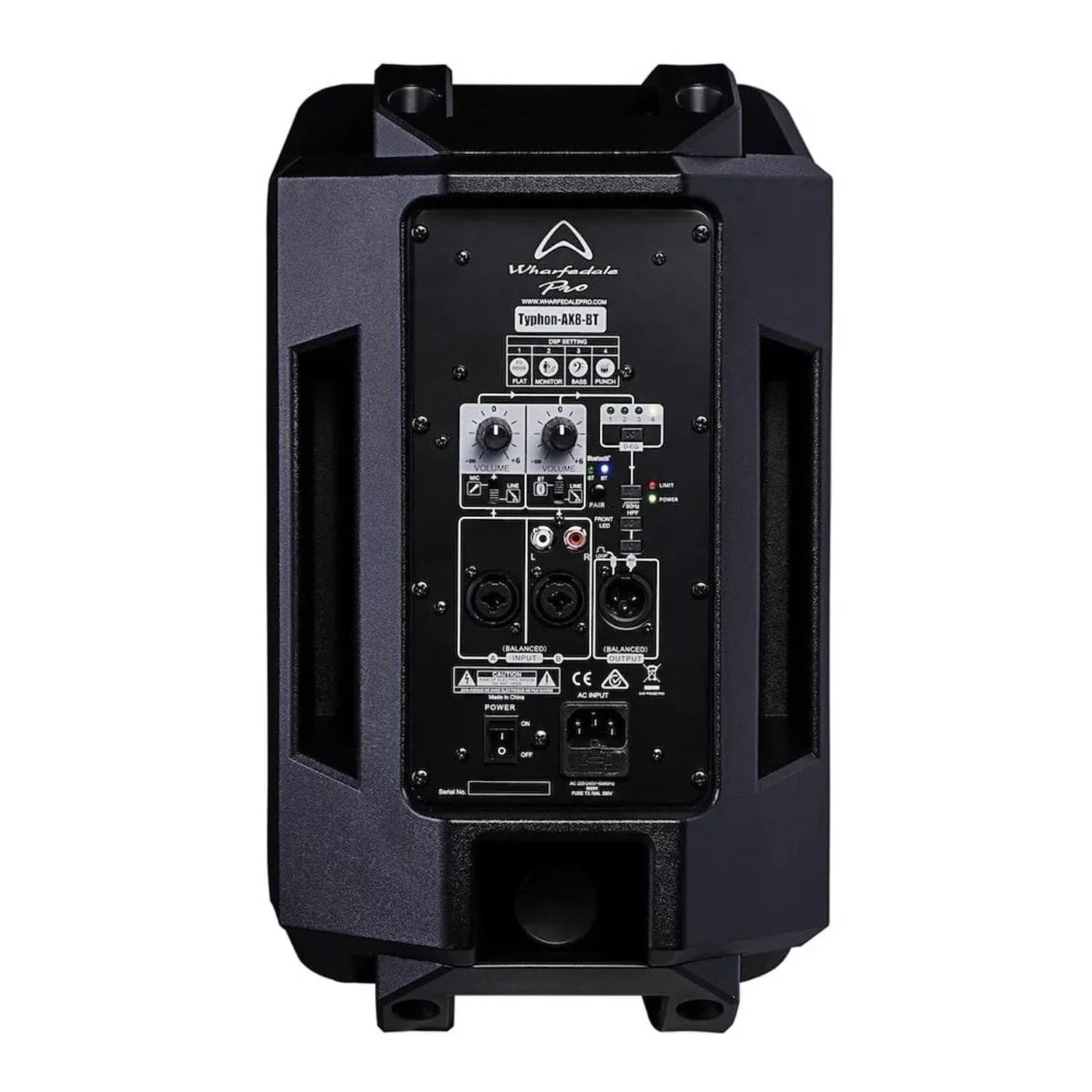

- Input Connector: 2 x XLR/ 6.3mm combi jack, 2 x RCA (Line/MIC)
- Input Impedance: 20K ohms
- Line Output Connector: XLR
- Power Supply: 220~240VAC/100~120VAC 50/60Hz

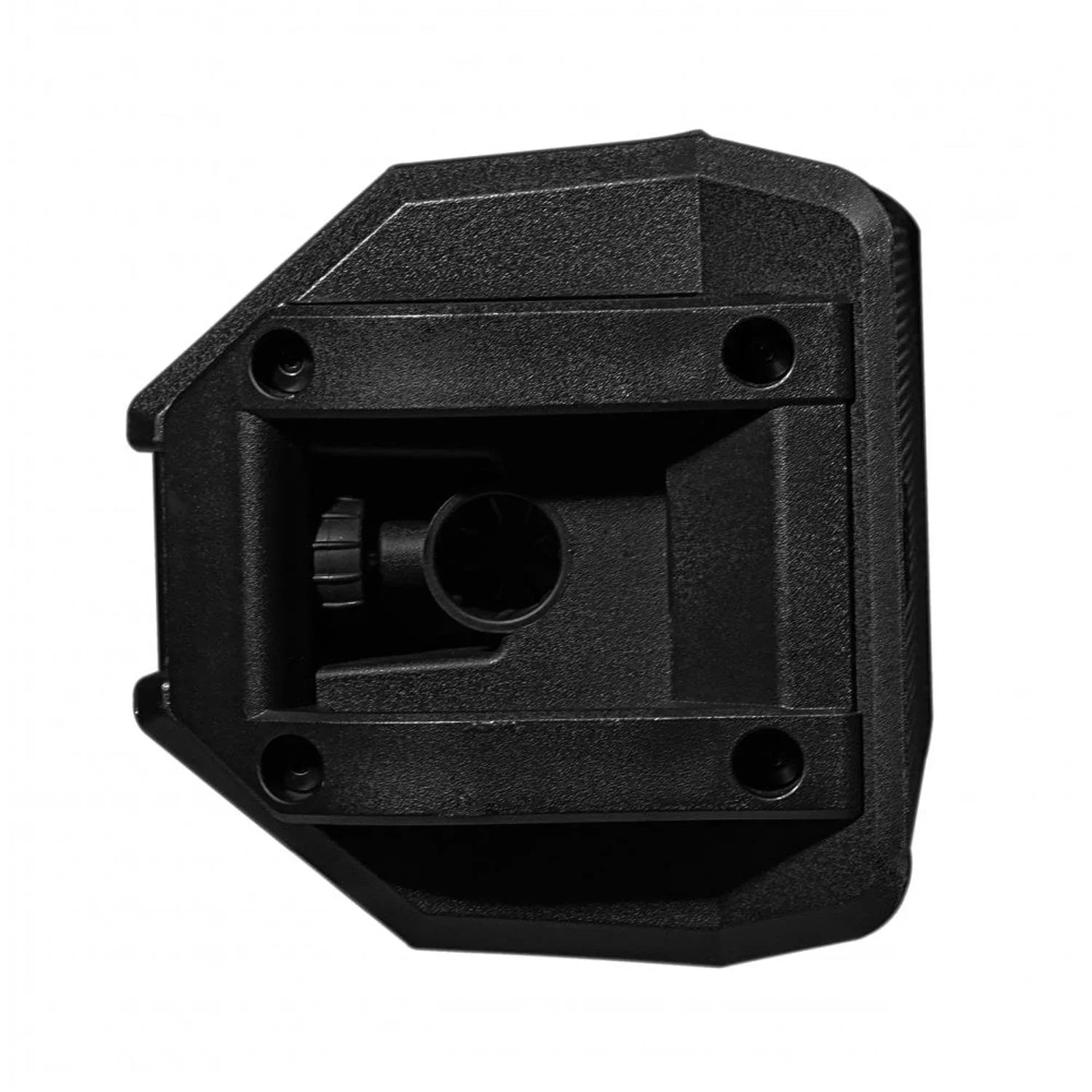

- Rigging / Bracket / Mounting Options: 8 x M6 (1 x M8 Back) threaded inserts, 35 mm pole socket with lock screw, Optional WPB-2 wall-mount bracket

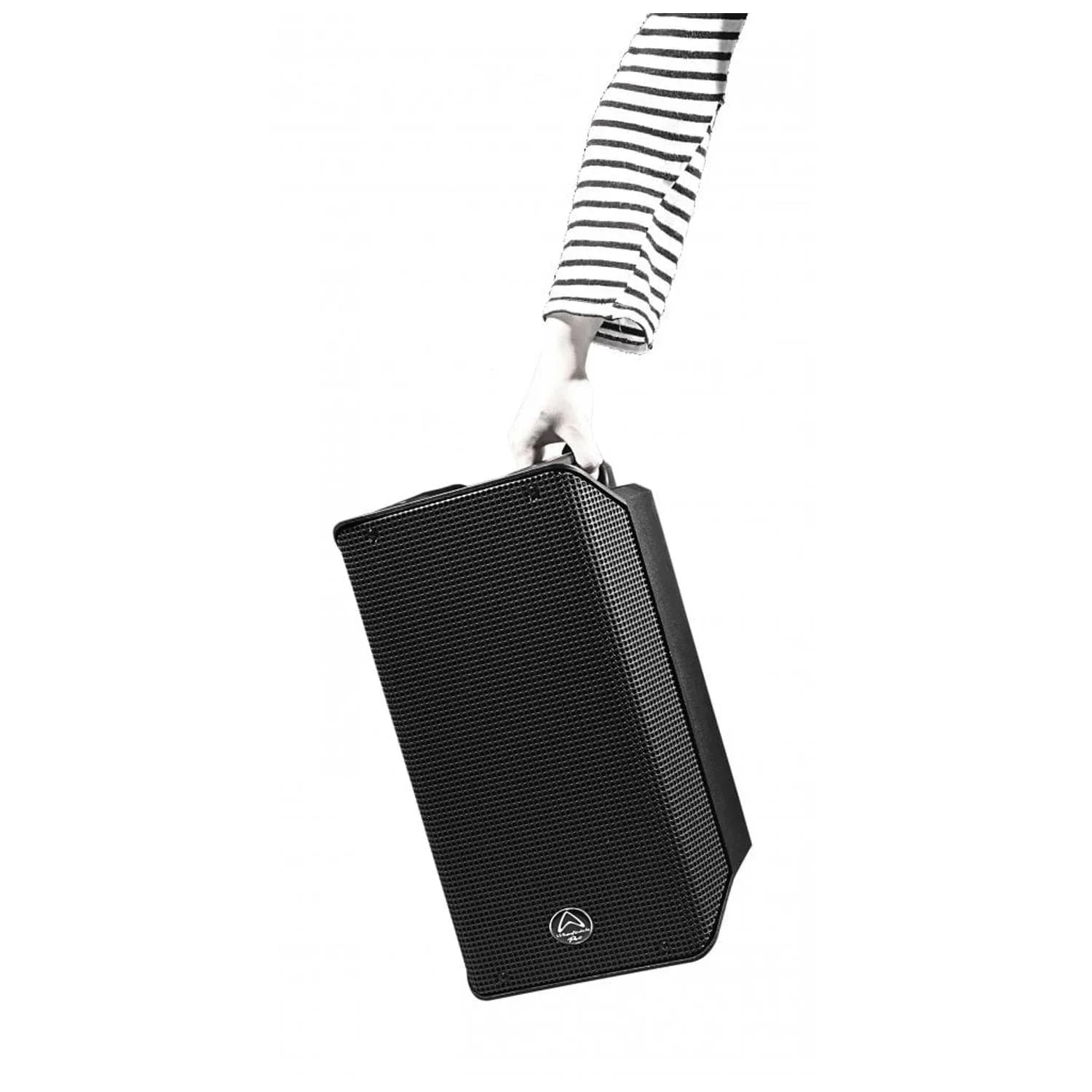

- Handles: 4 carry handles (on top and bottom side)
- Enclosure Material and finish: Injection Moulded Polypropylene
- Colour Options: Black paint
- Grille Material & Finish: steel
- Height: 433.6mm / 17.1"
- Width Front: 256mm / 10.1"
- Width Rear: 100.1mm / 3.9"
- Depth: 240mm / 9.5"
- Net Weight 10.7kg
