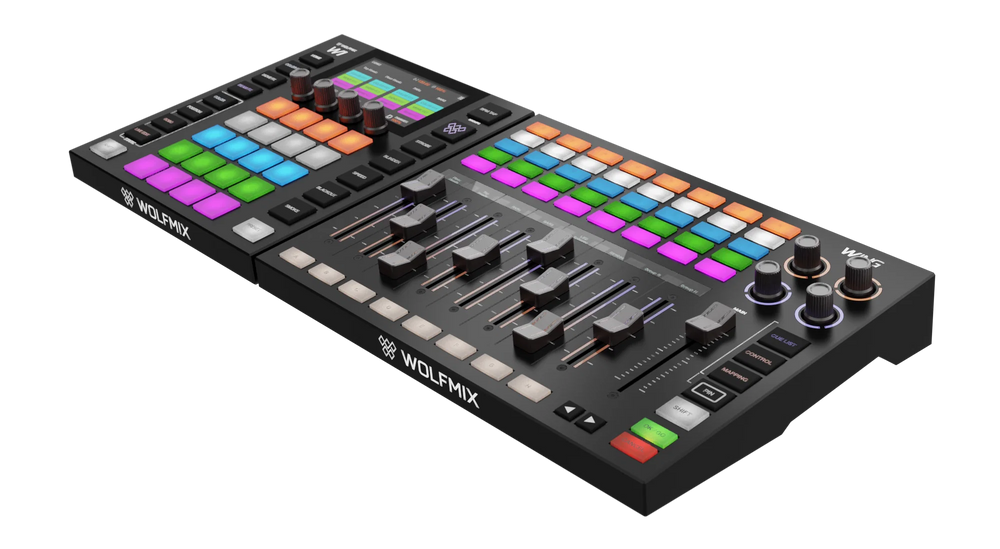

Wolfmix W1 MK3 DMX Lighting Controller & Wolfmix Wing Bundle

This bundle includes:

1 x Wolfmix W1 MK3 DMX Controller

1 x Wolfmix Wing Add On Controller

Wolfmix W1 MK3 DMX Controller

The Wolfmix W1 MK3 is a standalone performance DMX lighting controller designed to create professional light shows without the need for a computer. Built for DJs, clubs, live venues and event production, it delivers hands-on control with an advanced internal FX engine and support for up to 4 DMX universes. Featuring Colour FX, Move FX and Beam FX racks, built-in sequencer functionality and real-time performance control, the W1 MK3 provides smooth 25fps effect processing for moving heads, LED bars, scanners and multi-effect fixtures. Music synchronisation is supported via integrated microphone beat detection, 3.5mm line-in, BPM tap, Ableton Link and OS2L integration, making it ideal for DJ lighting control and live show environments. With thousands of onboard fixture profiles and access to over 15,000 via the WTOOLS app, plus a built-in fixture builder for custom configurations, the Wolfmix W1 MK3 offers scalable compatibility for expanding lighting rigs. Connectivity includes 2 x 3-pin & 1 x 5-pin DMX outputs plus 1 x 5-pin DMX input/output with WLINK, USB-C (5V 900mA) and USB-A with MIDI/MSD/WLINK support

• 2 year warranty
• Standalone DMX lighting controller for all-in-one light show programming and live performance
• Control up to four DMX universes for expanded channel capacity
• Advanced effects engine with dedicated Colour FX, Move FX and Beam FX racks
• Broad performance modes including strobe, blinder, speed, blackout and smoke control
• BPM tap, built-in microphone or line-in audio sync for tempo-locked lighting performance
• Ableton Link and OS2L integration for DJ software synchronisation
• Thousands of onboard fixture profiles with 15,000+ available via WTOOLS
• Built-in fixture builder for creating custom lighting profiles
• Durable ABS plastic exterior with reinforced powder-coated steel base plate with 100mm VESA (M4 6mm max)
• 4.3" Colour TFT capacitive touch display with tinted glass for clear, responsive feedback
• Electroplated encoder caps with incremental push and acceleration for smooth, precise control
• 37 silicone buttons with matt oil finish and LED backlighting for tactile programming and performance
• Built-in omnidirectional microphone with analogue adaptive peak detection
• Comprehensive DMX connectivity including 2 x 3-pin OUT, 1 x 5-pin OUT and 5-pin IN/OUT with WLINK
• USB-A connectivity for MIDI/MSD/WLINK control and USB-C (5V 900mA) for power and data
• High-performance ARM-based processing for smooth 25fps beam engine control
• See Wolfmix on YouTube for product videos here
• ABS Plastic
• Powder-coated steel base plate with 100mm VESA (M4 6mm max.)
• Powder-coated steel reinforced back plate
• 4.3" colour TFT with tinted glass
• Capacitive touch
• Electroplated encoder caps
• Incremental push with acceleration
• 37 Silicone buttons with matt oil finishing
• LED colour backlit
• 220Mhz CPU with ARM core
• 8MB RAM
• 16MB Flash
• Omnidirectional electret mic
• 3.5mm jack line-in
• Analog adaptive peak detector
• 2 x 3-Pin DMX OUT XLR connectors
• 1 x 5-Pin DMX OUT XLR connector
• 1 x 5-Pin DMX IN/OUT XLR connector with WLINK
• USB-C connector - 5V 900mA required (1500mA recommended for MIDI/WLINK)
• USB-A connector with MIDI, MSD & WLINK (5V 900mA)
• High-speed USB communication
• Dimensions (H x W x D): 62 x 195 x 220mm
• Weight: 1.005kg

Wolfmix Wing Add On Controller

Designed for the stage, Wolfmix WING is the companion to the small but powerful W1. Connect WING to any W1 MK1, MK2 or MK3 via a single USB cable and they fuse into a single integrated system, combining WING's motorised faders and expanded controls with the W1 touchscreen. Split your rig with SUBGROUPS, choreograph your show with CUE LIST, add detail with CONTROL and customise your workspace with MAPPING. With the same powerful beam engine at the core of both devices, WING and W1 together support up to 8 universes of DMX.

WING features 8 motorised faders with capacitive touch fader caps and lightguides, 8 OLED displays, an 8 x 5 RGB button matrix, dedicated group controls, a main fader and dedicated OK/GO and CANCEL buttons. Four DMX outputs provide 2 x 3-pin and 2 x 5-pin XLR connections, with each port freely assignable to any available universe.

CUE LIST allows presets to be arranged and played in sequence with fade and hold times, automatic cue jumps and MIDI Time Code support. CONTROL provides direct fixture and parameter access from the motorised faders, while MAPPING allows W1 functions, faders, buttons and encoders to be configured across multiple pages. WING can also operate as a generic MIDI controller for compatible external hardware and software.

• Designed as a companion controller for Wolfmix W1
• 8 motorised faders with capacitive touch fader caps and RGB lightguides
• 8 OLED displays for clear strip parameter identification
• 8 x 5 RGB button matrix with dedicated group controls
• Main output fader with dedicated OK/GO and CANCEL buttons
• Dedicated SCROLL and FINE encoders plus 2 assignable encoders
• CUE LIST mode for timed preset playback with fade, hold and MIDI Time Code support
• CONTROL mode for direct fixture and parameter adjustment from the fader banks
• MAPPING mode with assignable faders, buttons and encoders across multiple pages
• 8 fixture groups, each divisible into 8 subgroups for more detailed control
• Supports up to 680 fixtures and 1500 beams
• Up to 4 DMX universes, expanding to up to 8 universes when fused with W1
• Compatible with W1 MK1, MK2 and MK3
• Automatic project transfer when connected to W1
• Standalone operation available once synchronised with a W1
• Generic MIDI control for compatible external software and hardware
• Compatible with any DMX device
• W1 beam engine with Color FX, Move FX and Beam FX control
• Project backup and restore via W1
• PIN function allows WING modes to remain active while W1 is used independently
• 2 x 3-pin DMX OUT XLR connectors
• 2 x 5-pin DMX OUT XLR connectors
• USB-C power: 15V, 3A
• USB-C data
• USB-A: connects and powers the Wolfmix W1
• ABS plastic
• Powder-coated steel base plate with 100mm VESA mounting, M4, 6mm max
• 220MHz CPU with ARM core
• 8MB RAM
• 16MB Flash
• Dimensions (H x W x D): 57 x 290 x 220mm
• Weight: 1.5kg
