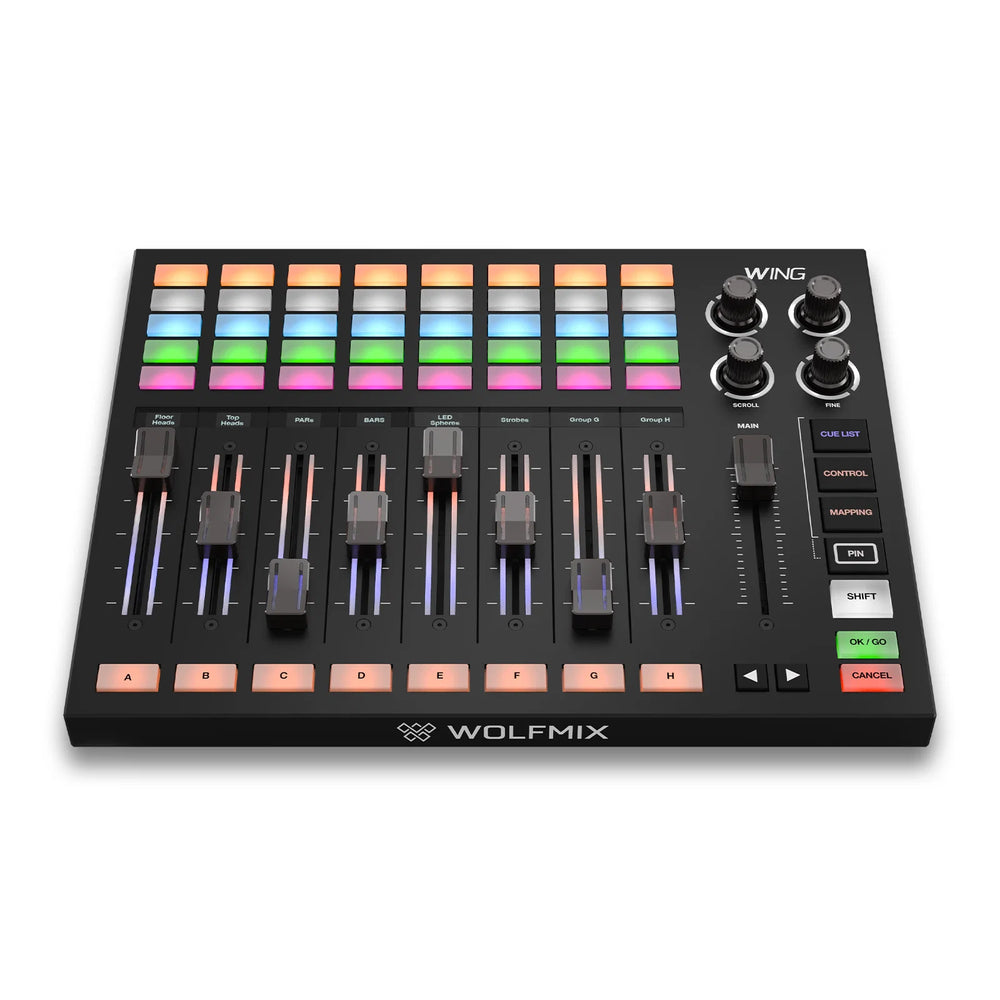

Wolfmix WING DMX Controller Add On
Product Description
Designed for the stage, Wolfmix WING is the companion to the small but powerful W1. Connect WING to any W1 MK1, MK2 or MK3 via a single USB cable and they fuse into a single integrated system, combining WING's motorised faders and expanded controls with the W1 touchscreen. Split your rig with SUBGROUPS, choreograph your show with CUE LIST, add detail with CONTROL and customise your workspace with MAPPING. With the same powerful beam engine at the core of both devices, WING and W1 together support up to 8 universes of DMX.
WING features 8 motorised faders with capacitive touch fader caps and lightguides, 8 OLED displays, an 8 x 5 RGB button matrix, dedicated group controls, a main fader and dedicated OK/GO and CANCEL buttons. Four DMX outputs provide 2 x 3-pin and 2 x 5-pin XLR connections, with each port freely assignable to any available universe.
CUE LIST allows presets to be arranged and played in sequence with fade and hold times, automatic cue jumps and MIDI Time Code support. CONTROL provides direct fixture and parameter access from the motorised faders, while MAPPING allows W1 functions, faders, buttons and encoders to be configured across multiple pages. WING can also operate as a generic MIDI controller for compatible external hardware and software.
- Designed as a companion controller for Wolfmix W1
- 8 motorised faders with capacitive touch fader caps and RGB lightguides
- 8 OLED displays for clear strip parameter identification
- 8 x 5 RGB button matrix with dedicated group controls
- Main output fader with dedicated OK/GO and CANCEL buttons
- Dedicated SCROLL and FINE encoders plus 2 assignable encoders
- CUE LIST mode for timed preset playback with fade, hold and MIDI Time Code support
- CONTROL mode for direct fixture and parameter adjustment from the fader banks
- MAPPING mode with assignable faders, buttons and encoders across multiple pages
- 8 fixture groups, each divisible into 8 subgroups for more detailed control
- Supports up to 680 fixtures and 1500 beams
- Up to 4 DMX universes, expanding to up to 8 universes when fused with W1
- Compatible with W1 MK1, MK2 and MK3
- Automatic project transfer when connected to W1
- Standalone operation available once synchronised with a W1
- Generic MIDI control for compatible external software and hardware
- Compatible with any DMX device
- W1 beam engine with Color FX, Move FX and Beam FX control
- Project backup and restore via W1
- PIN function allows WING modes to remain active while W1 is used independently
- 2 x 3-pin DMX OUT XLR connectors
- 2 x 5-pin DMX OUT XLR connectors
- USB-C power: 15V, 3A
- USB-C data
- USB-A: connects and powers the Wolfmix W1
- ABS plastic
- Powder-coated steel base plate with 100mm VESA mounting, M4, 6mm max
- 220MHz CPU with ARM core
- 8MB RAM
- 16MB Flash
- Dimensions (H x W x D): 57 x 290 x 220mm
- Weight: 1.5kg
