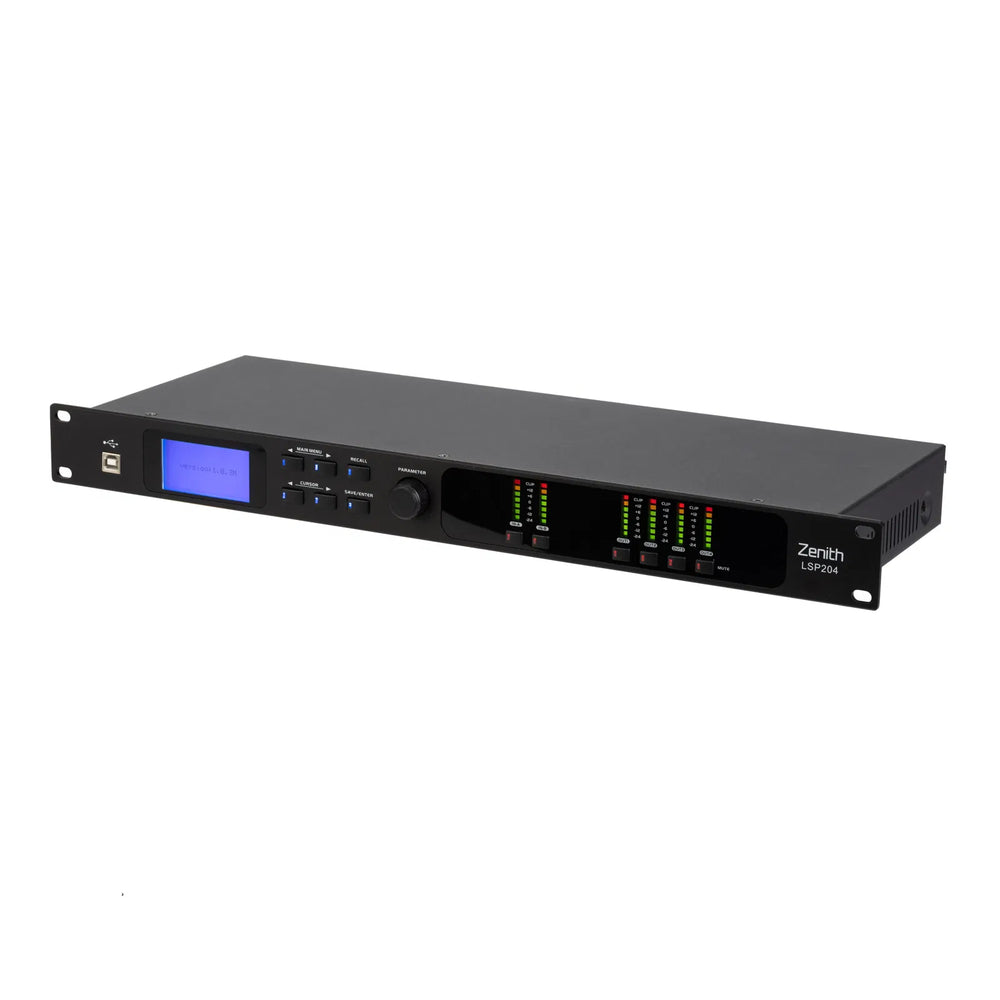

Zenith LSP204 MKII 2 in 4 out Loudspeaker Processor

Built around a powerful processor core, the Zenith LSP loudspeaker management systems offer a wide variety of features allowing the sound technician to adjust delay, dynamics, routing, crossover and EQ either from the easy to use interface on the front panel or via the Windows based PC editing suite. The processor is pre-loaded with a range of standard presets for basic systems including 2-way stereo, each of these maybe copied, edited and saved into user presets, or alternatively the sound technician may create and store their own. The user may backup or duplicate presets via the PC editing suite.

• 2 XLR inputs, 4 XLR outputs
• 24-bit DSP with high performance AD/DA converters
• 48kHz sampling rate
• Input/output level control with -40dB to +12dB range in 0.1dB increments
• 7 band PEQ (parametric EQ) for each input and output - each EQ features parametric, low shelf 6dB, low shelf 12dB, high shelf 6dB and high shelf 12dB
• PEQ frequency range: 19.7Hz thru 21.9kHz, gain range -30dB to +15dB, bandwidth: 0.017 to 4.750 octave
• Output high pass and low pass filter, each filter has multiple slopes and types
• Filter slopes: 12dB/Oct, 24dB/Oct,36dB/Oct, 48dB/Oct
• Filter types: Butterworth, Bessel or Linkwitz-Riley
• Up to 1 second of delay for each input and output, switchable and selectable
• Compressor for each input and output with adjustable threshold, ratio, attack-time, release-time and knee type
• Phase reverse for each input and output
• Copy function allows settings to be copied between channels
• Multi-channel parameters can be set simultaneously via the channel linking function
• Jog wheel control for parameter adjustment
• LCD display
• 7 segment LED level indicator for each input and output
• User friendly and intuitive Windows PC software on USB flash drive
• Power supply: 90~250V, AC 50/60Hz
• Dimensions (H x W x D): 45 x 482 x 158mm
• Weight: 2kg
