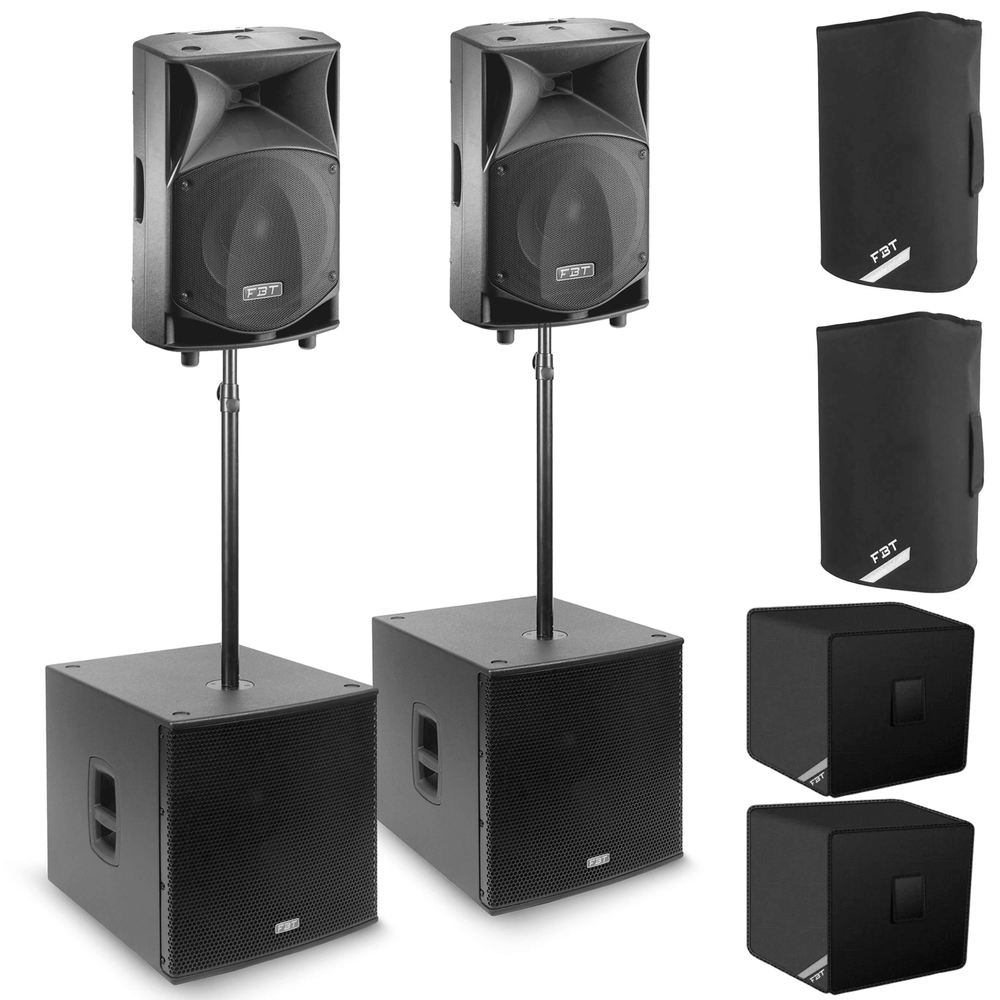

FBT JMaxX 112A Speaker & SUBline 118SA Subwoofer Package with Bags
Product Description
This bundle includes:
2 x FBT JMaxX 112A 12" Active Speaker - 1 x 12" + 1" Active Speaker (SPLdB 125/131) - 13.8KG
2 x FBT SUBline 118SA 18" Active Subwoofer - 18" Active Subwoofer (SPL dB 134/137) - 44.5KG
2 x Ultimax MSA 220BK Speaker Poles- Telescopic Poles
FBT JMaxX 112A 12" Active Speaker
The new FBT JMaxX 112A combines ease of use and versatility for many portable or installed sound applications: musicians, DJs, AVL contractors, rental sound reinforcement, corporate events, houses of worship, bars and clubs.
With its eye-catching gas-injected forms designed to virtually eliminate undesired enclosure resonance and reinforce strong low frequency performance, the 12-inch JMaxX 112A is equipped with FBT’s latest 90° x 60° HF horn design which delivers improved projection, accuracy, and dispersion of the mid and high frequencies.
Providing a myriad of possibilities for bands, DJs and solo artists, as well as for permanent installations, the JMaxX 112A is actually four loudspeakers in one. Derived from a decade of experience of portable sound reinforcement, the carefully tailored equalisation presets offer highly intelligible response for vocals and floor monitoring; slightly boosted response in lounge bar applications; punchy and forward sound for DJs and night venues; and a general-purpose EQ setting that mirrors the original and familiar FBTMaxX voicing.
The JMaxX 112A features FBT’s latest generation lightweight 700W + 200W Class D power amplifier with universal switch mode power supply, delivering abundant power and headroom to reproduce even the largest transients without distortion.
XLR inputs and outputs, volume control, the EQ presets and filters, and ground lift switch are all conveniently located on a clearly laid out rear panel, making loudspeaker setup and operation intuitive and consistently repeatable.
The JMaxX versatility is further underscored by the many mounting and fixing options that the ergonomically styled cabinets provide. Mounting in fixed installations is made easy using the M10 suspension points or wall bracket flange plates, while portable use is facilitated by the built-in 35mm pole mount socket.
There’s no need for separate stage monitors, as JMaxX’s cabinet profiles are designed with 12°, 40°, and 55° wedge angles, and when used with the specific floor monitoring EQ presets, will ensure that performers hear themselves with ultimate clarity.
Weighing just 13.8 Kg and yest still packing a genuine 900 Watts RMS The JMaxX 112A is a winning combination of perfomance in an ulta lightweight package.
- 12 Inch Low Frequency Woofer and a 1" High frequency Compression driver
- 2-way, bi-amplified bass reflex design cabinet
- 700W RMS LF, 200W RMS HF, Class D power amplifiers with switch mode power supply
- DSP with 4-EQ presets
- Control panel with: XLR IN and XLR LINK, Volume, EQ presets, HP filter, GND LFT switch
- 2 x M10 suspension points, 35mm (1.3/8”) top-hat speaker stand socket, wall bracket mount flange plate
- 90° Horizontal x 60° Vertical constant directivity horn
- Stage monitor angling facility with 12°, 40° or 55° taper
- Just 13.8 Kg
Configuration: 2 Way
Frequency response: 48Hz - 20kHz
Low frequency woofer: 12" (2" VC)
High frequency driver: 1" (1" VC)
Maximum SPL cont/peak: 131 dB
Dispersion: 90 x 60
Input connector: XLR + 6.3mm Jack
Net Weight: 13.8kg
Built-in amplifier LF/HF: 700w/200w
Power cord: 5m IEC
Net Dimension (WxHxD): 402 x 644 x 345 mm / 15.8 x 25.4 x 13.6 inch

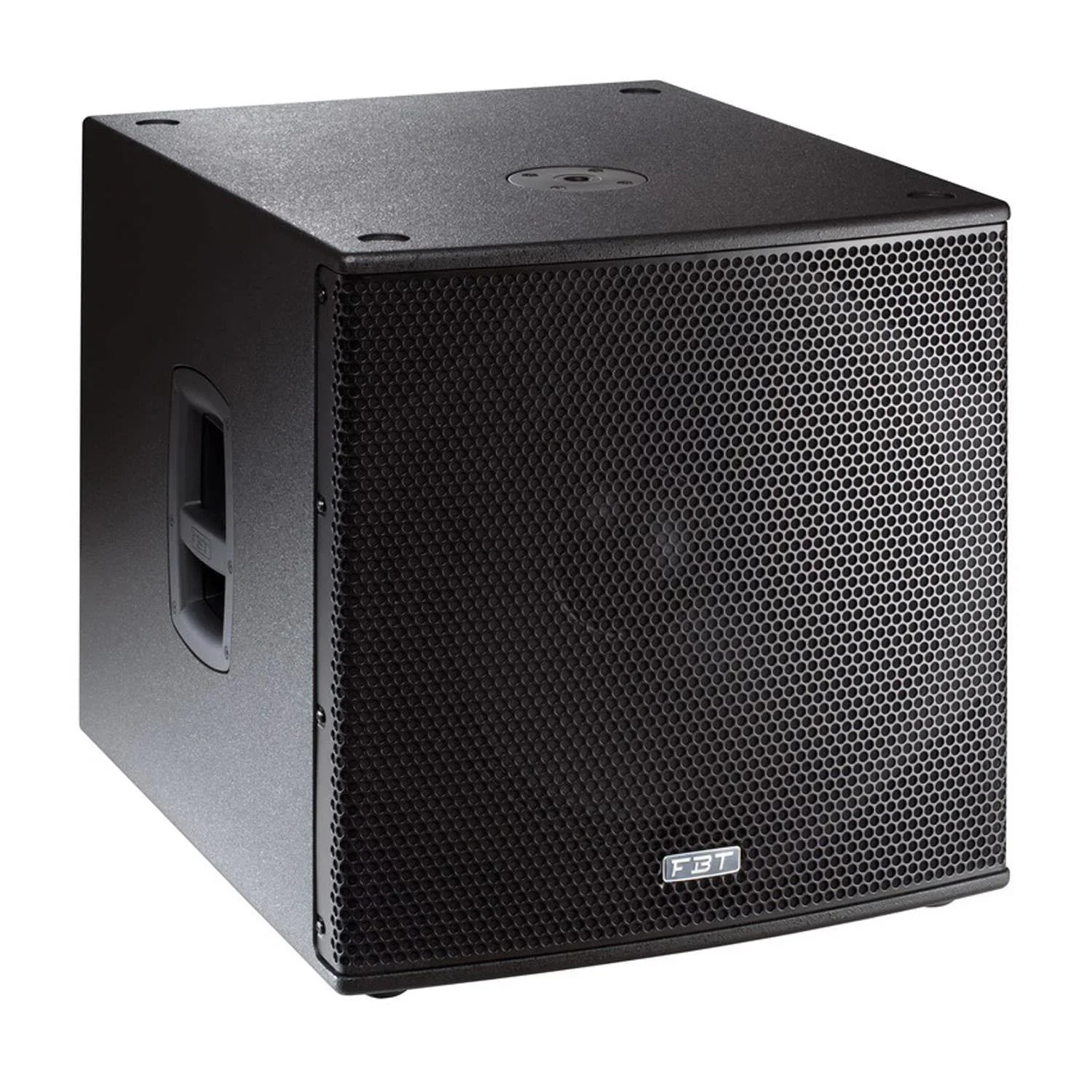

FBT SUBline 118SA 18" Active Subwoofer
The SubLine 118SA is a compact ACTIVE sub weighing just 44.5Kg .Yet delivers amazing punch. The built in amplifier delivers an amazing 2400Watts (Peak) thats an astonishing 137dB SPL from the 18", 3" Voice coil driver with incredible input flexibility with 2.1 option and powercon TRUE1 in and out . This great combination is manufactured using baltic birch plywood cabinet, 100% made in Italy .
The SUBline 118SA has been completely redesigned with a bass-reflex configuration, built in birch plywood and aimed to extend the low frequency response to a wide range of FBT speaker systems.
Created with the aim to maximize SPL/SIZE ratio, they have Class D amplifiers, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker.
With IN/OUT stereo connectors, it is possible to use only one subwoofer with Left and Right speakers. The Neutrik TRUE1 Power connection negates the need for a power switch while offering a solid locking connection.
Optional wheels,, ergonomic integrated carrying handles and tour-grade plywood cabinets allow an easy transport
- Bass-reflex design subwoofer
- 460 mm (18") high excursion woofer with 75 mm (3") voice coil, custom made for FBT by B&C
- Frequency response from 33Hz - 100Hz
- 1200W RMS Class D power amplifier with switch mode power supply
- Digital Signal Processor with 6 presets, 4 equalisation with 2 LPF Crossover Settings, 6 step digital delay line up to 3.5m
- Control Panel with Stereo XLR in/outs, Volume, EQ Presets, Delay, Phase Reversal Switch 0°-180°, 3 status LED indicators
- 15 mm (0.59") birch plywood scratch resistant enclosure with internal bracing
- M20 (20mm) top mount speaker stand socket and two aluminium ergonomic FBT handles
Configuration:1 way
Built-in amplifier LF/HF:1200 W RMS
Built-in amplifier peak LF/HF:2400 W
Frequency response:33Hz-100Hz -6dB
Low Frequency woofer:18 - 3 coil inch
Maximum SPL cont/peak:134/137 half-space dB
Dispersion:omnidirectional HxV
Input impedance:22 Kohm
Crossover Frequency:100Hz KHz
AC Power requirements:800 VA
Input connector:stereo XLR with loop
Power cord:7/16.4 m/ft
Net Dimension (WxHxD):555x572x666 / 21.8x22.5x26.2 mm/inch
Net Weight:44.5/98.1 kg/lb
Transport Dimension (WxHxD):800x642x800 / 31.5x25.3x31.5 mm/inch
Transport Weight:54.5/120.1 Kg/lb
